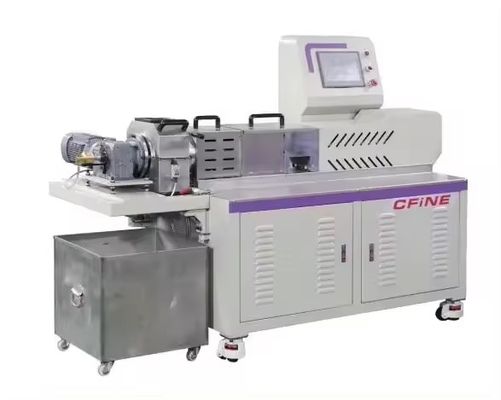

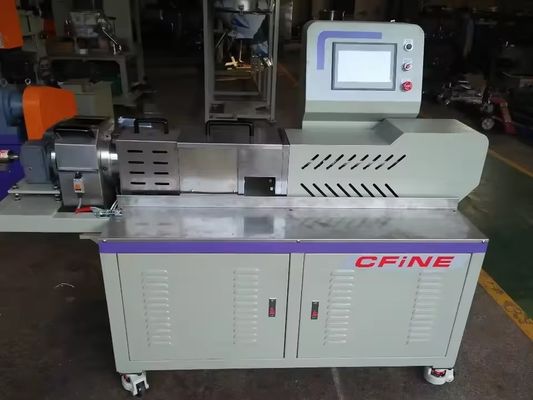

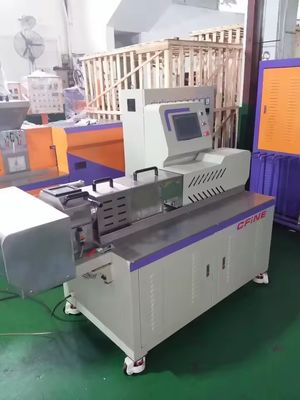

Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity

Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity
Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity

Large Image :  Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $26800-$30000
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity

Description
Capacity: 1L Hydraulic Cylinder Specifications: Φ40×265mm
Maximum Work Pressure: 9MPa Power Of The Oil Pump Motor: 0.75kw
Total Heating Power: About 2kw Maximum Granulation Speed: 0~200r/min
Size: L1200*W600*H1350MM Weight: About 85kg
Highlight:

Compression Type Ceramic Extrusion Pelletizer

,

1L Capacity Ceramic Extrusion Pelletizer

Custom CF-75 Direct Compression Type Ceramic Extrusion Pelletizer



Product brief introduction

The granulator is used to granulate ceramic powder injection molding materials. This equipment is used in conjunction with a 0.3L or 0.6L internal mixer to complete the granulation process after the powder material is internally mixed. The PLC accurately controls the temperature, movement, and other aspects of the program.



Technical Data

  CF-75 CF-90 CF-170
Storage Tank Volume 1L 1L 5L
Each Batch of Material Input 1-3KG 2-5KG 10-15KG
Injection Cylinder Φ75MM Φ90MM Φ170MM
Oil Hydraulic Cylinder Φ40×265mm Φ100×550mm Φ150×600mm
MAX Pressure 9Mpa 14Mpa 14Mpa
MAX Shear Rate 200r/min 200r/min 50r/min
Size L1200*W600*H1350MM L2030*W830*H1450MM L2300*W900*H1450MM
Weight About 85KG About 1200KG About 1500KG



After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.



Direct Compression Type Ceramic Extrusion Pelletizer 1L Capacity 0

Tag:

Ceramic Extrusion Pelletizer,

Ceramic Pelletizer Machine,

Ceramic Granulating Machine
