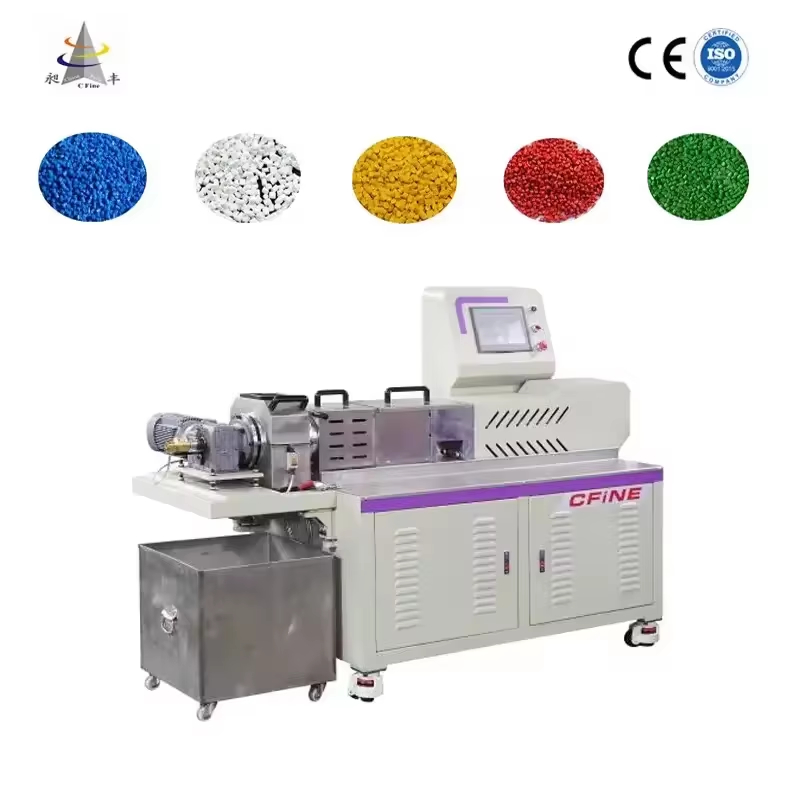

Precise Control 1L Ceramic Pelletizer , Ceramic Powder Extrusion Granulating Machines

Precise Control 1L Ceramic Pelletizer , Ceramic Powder Extrusion Granulating Machines
Precise Control 1L Ceramic Pelletizer , Ceramic Powder Extrusion Granulating Machines

Large Image :  Precise Control 1L Ceramic Pelletizer , Ceramic Powder Extrusion Granulating Machines

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $30200-$35000
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Precise Control 1L Ceramic Pelletizer , Ceramic Powder Extrusion Granulating Machines

Description
Capacity: 1L Hydraulic Cylinder Specifications: Φ100×550MM
Maximum Work Pressure: 14MPa Power Of The Oil Pump Motor: 2.2KW
Total Heating Power: About 6KW Maximum Granulation Speed: 200r/m
Size: L2030*W830*H1450mm Weight: About 1200KG
Highlight:

1L Ceramic Powder Granulating Machines

,

Ceramic Extrusion Granulator 1L

,

Precise Control Ceramic Pelletizer

CFine Factory Custom CF-90 Ceramic Extrusion Pelletizer



Product brief introduction

The granulator is designed for producing granules from ceramic powder injection molding compounds. Working together with a 1L internal mixer, it carries out the granulation process once the powder has been blended. The system supports both manual and automatic operation, with the PLC ensuring precise control over temperature, motion, and other programmed parameters.



Technical Data

  CF-75 CF-90 CF-170
Storage Tank Volume (L) 1 1 5
Each Batch of Material Input 1-3kg 2-5kg 10-15kg
Injection Cylinder Φ75mm Φ90mm Φ170mm
Oil Hydraulic Cylinder Φ40×265MM Φ100×550MM Φ150×600MM
MAX Pressure 9Mpa 14Mpa 14Mpa
MAX Shear Rate 200r/m 200r/m 50r/m
Size (MM) L1200*W600*H1350 L2030*W830*H1450 L2300*W900*H1450
Weight (KG) About 85 About 1200 About 1500



After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
