1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder

1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder
1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder 1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder 1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder

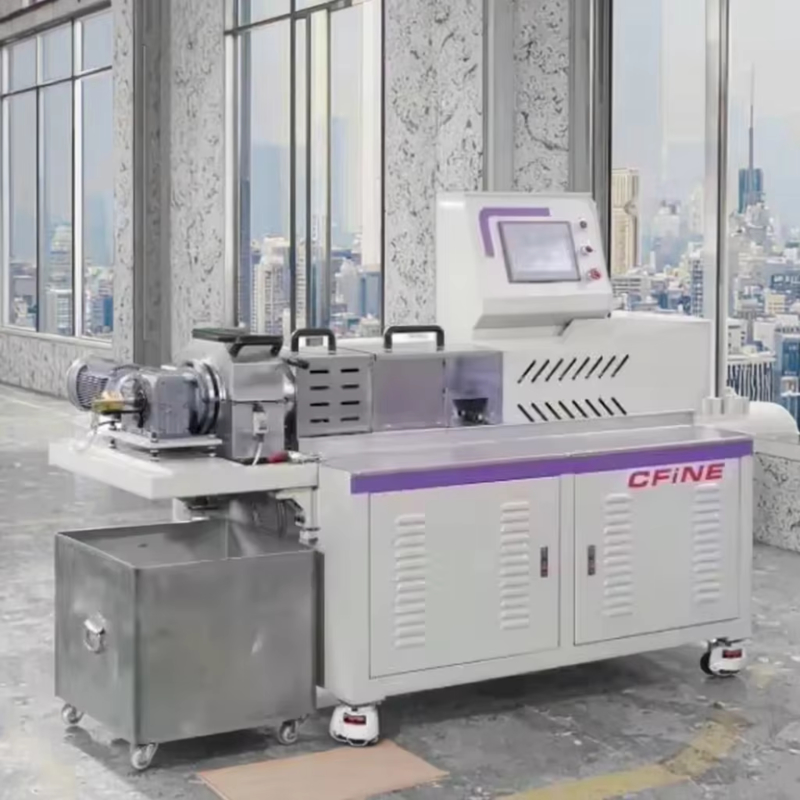

Large Image :  1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $30200-$35000
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder

Description
Capacity: 1L Hydraulic Cylinder Specifications: Φ100×550mm
Maximum Work Pressure: 14MPa Power Of The Oil Pump Motor: 2.2kw
Total Heating Power: About 6kw Maximum Granulation Speed: 200r/min
Size: L2030*W830*H1450MM Weight: About 1200kg
Highlight:

2.2kw Extrusion Pelletizer Machine

,

1L Capacity Extrusion Pelletizer Machine

,

Extrusion Pelletizer For Ceramic Powder

Custom CF-90 Direct Compression Type Ceramic Extrusion Pelletizer



Product brief introduction

The granulator is used to granulate ceramic powder injection molding materials. Used in conjunction with a 1L internal mixer, this equipment completes the granulation process after powder material mixing. It can be controlled manually or automatically, and the PLC accurately controls the temperature, movement, and other aspects of the program.



Technical Data

  CF-75 CF-90 CF-170
Storage Tank Volume 1L 1L 5L
Each Batch of Material Input 1-3KG 2-5KG 10-15KG
Injection Cylinder Φ75MM Φ90MM Φ170MM
Oil Hydraulic Cylinder Φ40×265mm Φ100×550mm Φ150×600mm
MAX Pressure 9Mpa 14Mpa 14Mpa
MAX Shear Rate 200r/min 200r/min 50r/min
Size L1200*W600*H1350MM L2030*W830*H1450MM L2300*W900*H1450MM
Weight About 85KG About 1200KG About 1500KG



After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
