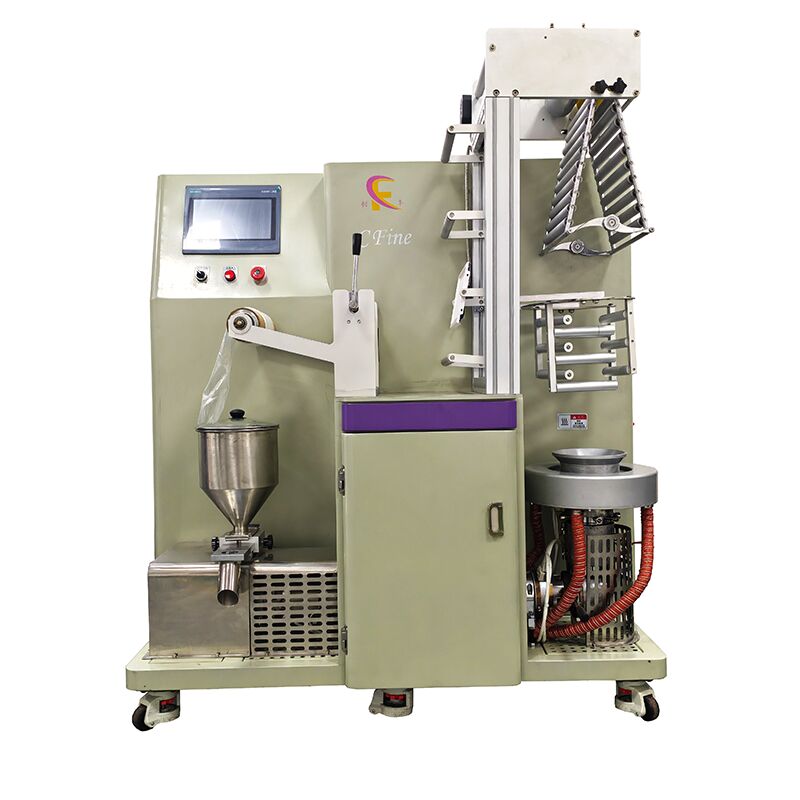

Custom Lab Blown Film Machine

Custom Lab Blown Film Machine
Custom Lab Blown Film Machine
Custom Lab Blown Film Machine Custom Lab Blown Film Machine

Large Image :  Custom Lab Blown Film Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Custom Lab Blown Film Machine

Description
Screw Diameter: 20MM Selectable L/D: 28：1
Screw RPM: 0~100rpm Variable Frequency Speed Control Heating Zone: 6 Zone Heating
Main Motor: 2.2KW~5.5KW Control System: PLC Program Control + 10-inch Color Touch Screen
Size: L1200*W500*H1450MM Power Supply: 3∮ AC380V 15A
Weight: About 200kg

Custom Lab Blown Film Machine



Technical Data

  CF-20 CF-25 CF-30
Screw Diameter 20mm 25mm 30mm
Selectable L/D 28:1
Screw RPM 0~100rpm Variable frequency speed control
Heating Zone 6 Zone Heating
Main Motor 2.2kw~5.5kw
Control System PLC program control + 10-inch color touch screen
Size L1200*W500*H1450mm
Power Supply 3∮ AC380V 15A
Weight About 200KG



Product Superiority

The extrusion blown film technique involves the continuous forcing of molten plastic through a die aperture under controlled thermal and shear conditions. Subsequent expansion via pressurized air, combined with wind ring cooling and regulated haul-off systems, produces a dual-layer plastic film. This specialized apparatus evaluates the film-forming capabilities of polymer compounds, detects internal gel formations, and assesses the uniformity of pigment dispersions, blend compositions, and final extrudate characteristics.



Custom Lab Blown Film Machine 0
