Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics

Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics
Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics

Large Image :  Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $9000-$20000
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics

Description
Material: Imported Alloy Etc Weight: 400Kg
Diameter Of Barrel: 120Mm Length Of Barrel: 350Mm
Batch Feeding(depending On Material): 500g~800g Electrical Heating(Main Motor): 0.75Kw
Water Cooling(Main Motor): 3.75Kw Speed Ratio: 1:1.24
Highlight:

Custom Lab Open Mixing Mill

,

Mixing Mill For Engineering Plastics

Custom Lab Open Mixer Mill For Engineering Plastics



Product brief introduction

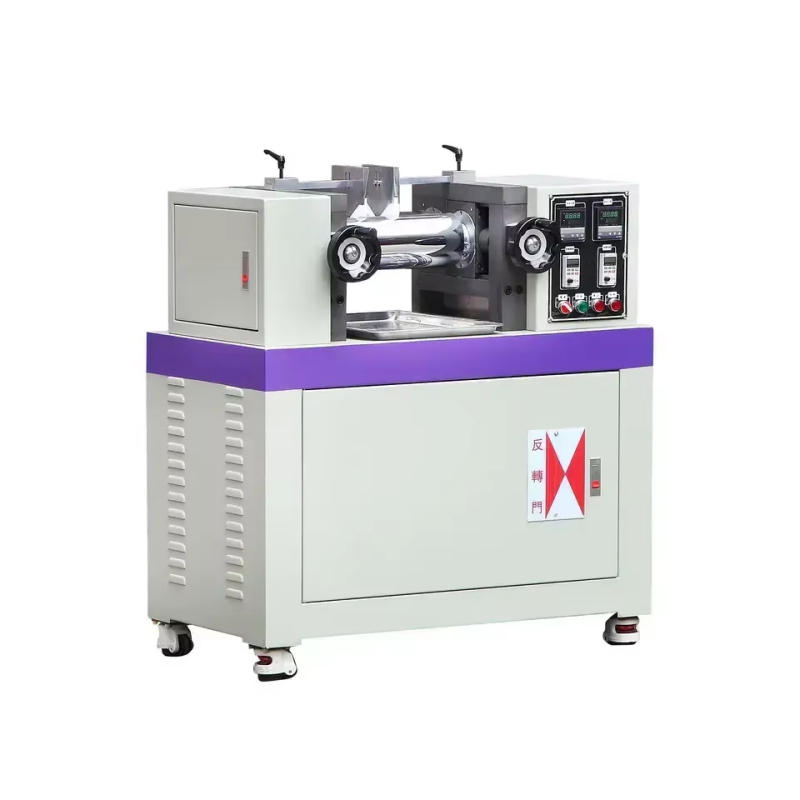

This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastic,pigment masterbatch,silicone rubber and other polymers;The double rollers are mirror-chromed with eletric heating and water cooling,the surface temperature of the roller is uniform.The space between the two rollers is adjustable;Multi-directional Safety protection device make it safe and reliable,durable.





Mixing Mill Technical Data

  CF-120 CF-160 CF-200 CF-230 Remarks
Diameter of Barrel 120mm 160mm 200mm 230mm Length of barrel can be customized according to customer requirements
Length of Barrel 350mm 350mm 520mm 620mm
Batch Feeding(g) 500~800 800~1500 1500~2600 3000~5000
Electrical Heating 0.75kw 1.5kw 3.75kw 3.75kw
Water Cooling 3.75kw 5.5kw 7.5kw 11kw
Weight 400kg 600kg 850kg 1100kg





Product Superiority

1. Two rollers made of mirror high carbon steel,hardness is HRC55-62

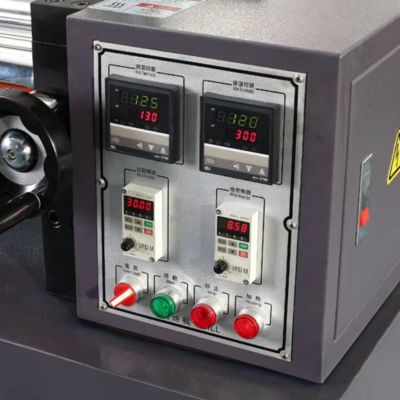

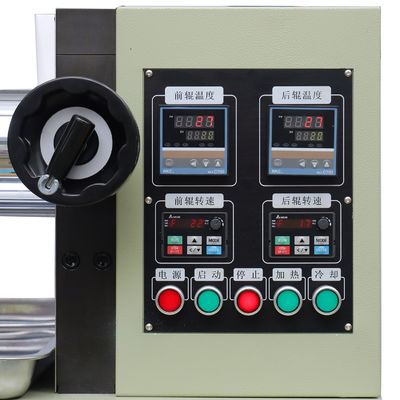

2. Taiwan Fotek temperature controller with stable quality

3. Customized good quality heating tube with long lifetime

4. Roller gap prevent material enter heating tube

Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics 0

Custom Lab Open Mixing Mill For Mixing And Dispersing Engineering Plastics 1
