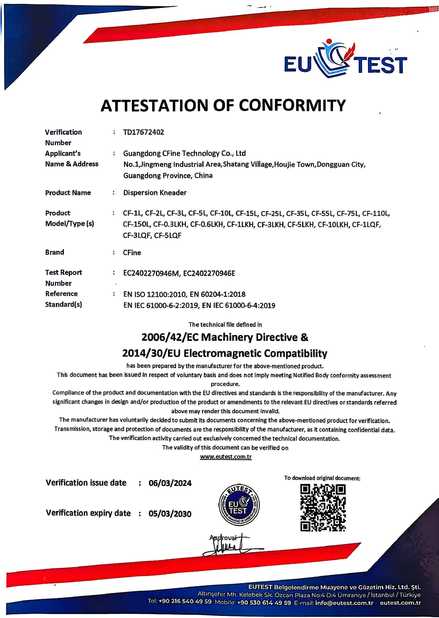

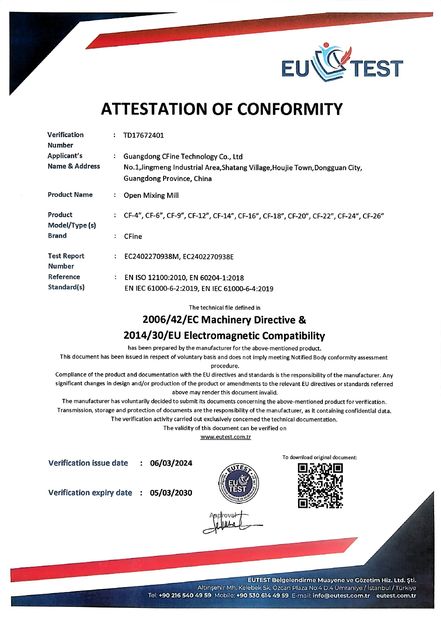

Certification

Customer Reviews

Their equipment has low noise and stable operation during use. This cooperation is very pleasant, and they also carefully helped us change the language on the control panel. Both the product, technology, and service are excellent.!!

—— Anthony Lee

We received the machines on time. As a distributor, I truly appreciate reliable suppliers — and I dislike delays. We've purchased these machines multiple times, and they have consistently performed well. This is not our first cooperation, and once again, your team has proven to be excellent, with very good after-sales service. Thank you!

—— Piters Eva

Easy to communicate & understand Very professional The order was fully compliant Friendly & helpful

—— Lisa

I'm Online Chat Now

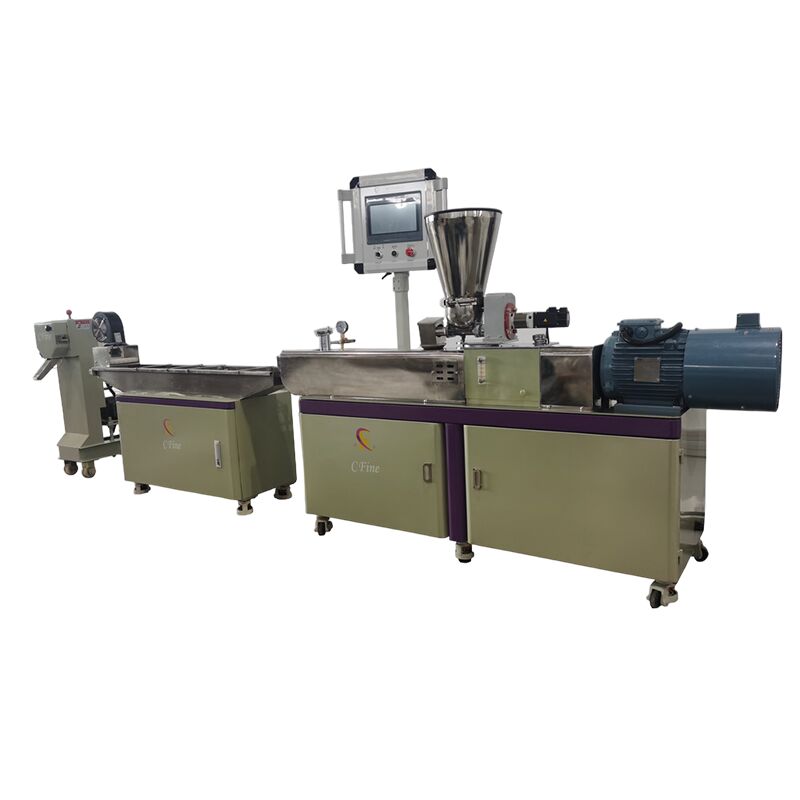

Manufacturer Custom Twin-screw Granulator Machine

Large Image : Manufacturer Custom Twin-screw Granulator Machine

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	CFine
Certification:	CE,ISO 9001
Model Number:	CF-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$15000-$16000
Packaging Details:	Wooden cases
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Manufacturer Custom Twin-screw Granulator Machine

Description

Gauge Of The Screw Rod:	21.7mm	Draw Ratio:	40:1
Material Of The Screw Element:	W6MO5Cr4V2 High-speed Tool Steel	Material Of The Screw Core Shaft:	40CrNiMoA
Screw Hardness:	HRC62~64	Main Motor Power:	TECO
Main Screw Speed:	60~400rpm	Water-cooling System:	1.2 Meters 304 Stainless Steel Sink
Shearing Machine Power:	1.5kw	Material Of The Barrel:	38CrMoAlA Nitriding Steel

Manufacturer Custom Twin-screw Granulator Machine

Technical Data

	CF-20	CF-35
Screw diameter	21.7mm	35mm
draw ratio	40:1
Main Motor	4kw	18.5kw/22kw
reduction gearbox	reduction ratio 2.5:1	reduction ratio 3:1
Maximum speed	In terms of design 500PRM,actually 385PRM	In terms of design 800PRM,actually 480PRM
type of cooling	Sink cooling / Conveyor belt cooling
Sink cooling	1.2 meters of 304 stainless steel	2.5 meters of 304 stainless steel
Conveyor belt cooling	3-meter air-cooled conveyor belt	6-meter air-cooled conveyor belt

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
