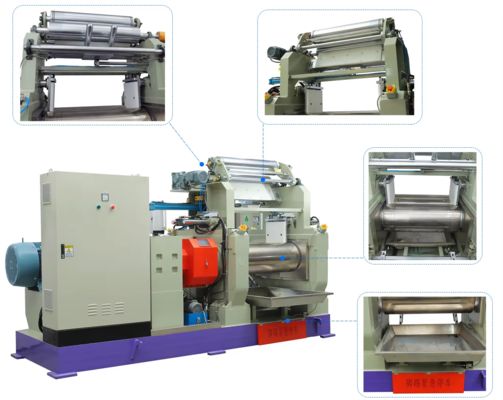

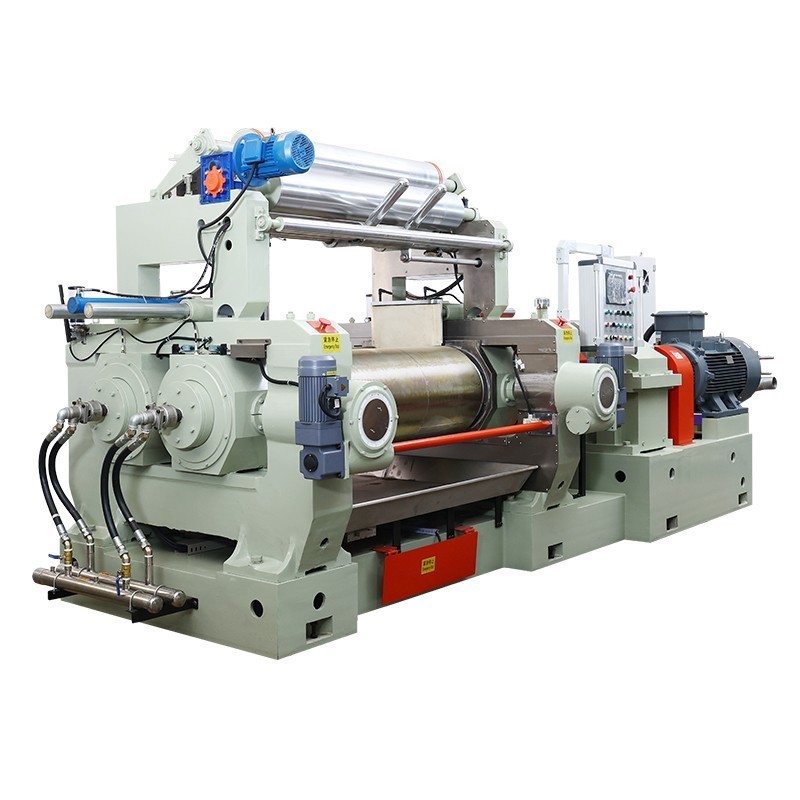

Open Mill Rubber Mixing Machine 16 Inches With Two Horizontal Rollers

Custom Low Price 16 Inches Open Mill For Rubber​

Product brief introduction

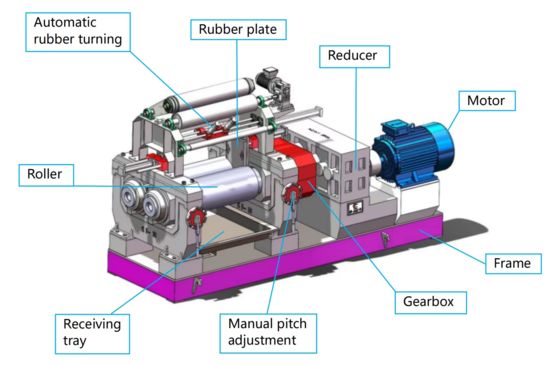

This type of mill, called an open mixing mill, operates intermittently to process plastic materials. The device is built from two horizontal rollers that can be set at different spacing. Its essential function is to produce a uniform, plasticized blend of raw compounds to be fed into the calender. When working with rubber, the rollers apply opposing shear and extrusion forces. Through successive mixing cycles, both physical blending and chemical chain scission occur, which allows all ingredients to be evenly distributed throughout the rubber.

Technical Data

Applied Range

Mainly used for:natural rubber,synthetic rubber,silicone,EPDM,fluororubber,EVA,PVC,TPE and other materials for molding,tablet production and other processes.

Product Superiority

1. Bearing seat:Made of high-quality steel precision casting and processed with high-precision CNC,it has strong load-bearing capacity and good seismic resistance.
2. Bearing lubrication:Adopting aforced circulation lubricating oil system to reduce manual maintenance.
3. Base: Made ofhigh-quality steel plates welded together, with an integrated structure and good seismicresistance.
4. Roller pitch adjustment: can be customized according to customer requirements, electric adjustment or oil pressure adjustment.
5. Rubber flipping: Can be customized according to customer requirements, with an automatic glue flipping system to reduce manual laborintensity.
6. Operation: The equipment is easy to operate and easy to maintain.
7. Safety: Install emergency stop buttons in front and backfor quick shutdown.

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
