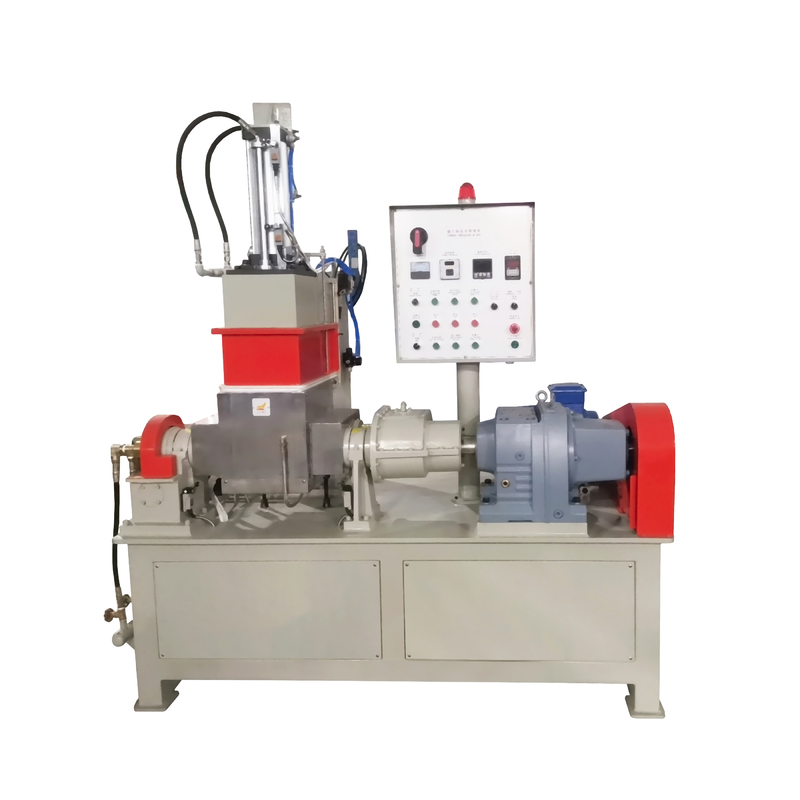

Custom 10L Laboratory Metal Powder Kneader Equipment Compact Design

Custom 10L Low Price Wearproof Metal Powder Kneader


Product brief introduction

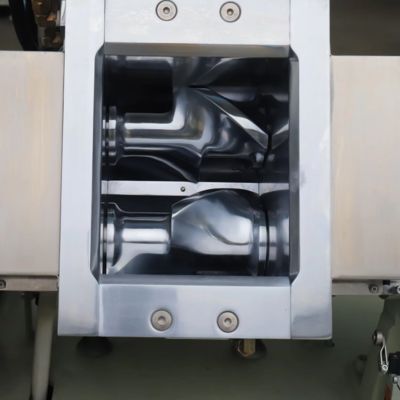

To ensure durability and purity, the mixer’s contact surfaces (chamber, side plate, hammer, and blade shaft) are coated with tungsten carbide, offering exceptional wear resistance with zero contamination risk. The system efficiently handles mixing, dispersing, and stirring of metal powders and binder combinations under specific temperature conditions. Once the batch forms a mud-like consistency, it is automatically discharged and forwarded to the following step. Compact and versatile, this mixer is the preferred solution for small-batch manufacturing, sample trials, laboratory experiments, and classroom instruction.

Technical Data


Product Superiority
1. New powder leak-proof design,and easy to change or take out
2. New heating and cooling system,warming faster and good cooling performance.
3. When use for ceramic and metal industry,with utility model patents of our company,the insideof the contact part for the material is coated with ultra wear-resisting alloy,greatly increase the useful life.

Technical Advantage
1. Changfeng's anti-leakage powder device adopts mechanical shaft seal tightening technology and uses a self-lubricating seal ring to keep the seal ring in a compressed and sealed state during the mixing process. The self-lubricating seal ring can further reduce the wear of the mixing system and more effectively reduce the noise such as whistling caused by leakage and poor sealing.

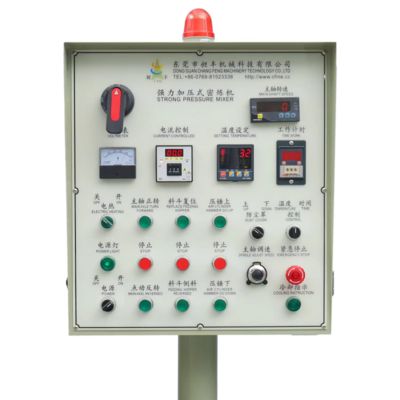

2. This machine adopts a through-type heating system, which heats faster and transfers temperature more evenly, and is 50% more efficient than the traditional heating plate. And according to customer needs, a PLC program control system can be used.
3. The interior of the mixing chamber adopts a complex tube belt design, which has good heat exchange and precise temperature control. The rotor adopts water cooling to effectively prevent sticky materials, control temperature accurately, and make the material dispersion more even.


After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
