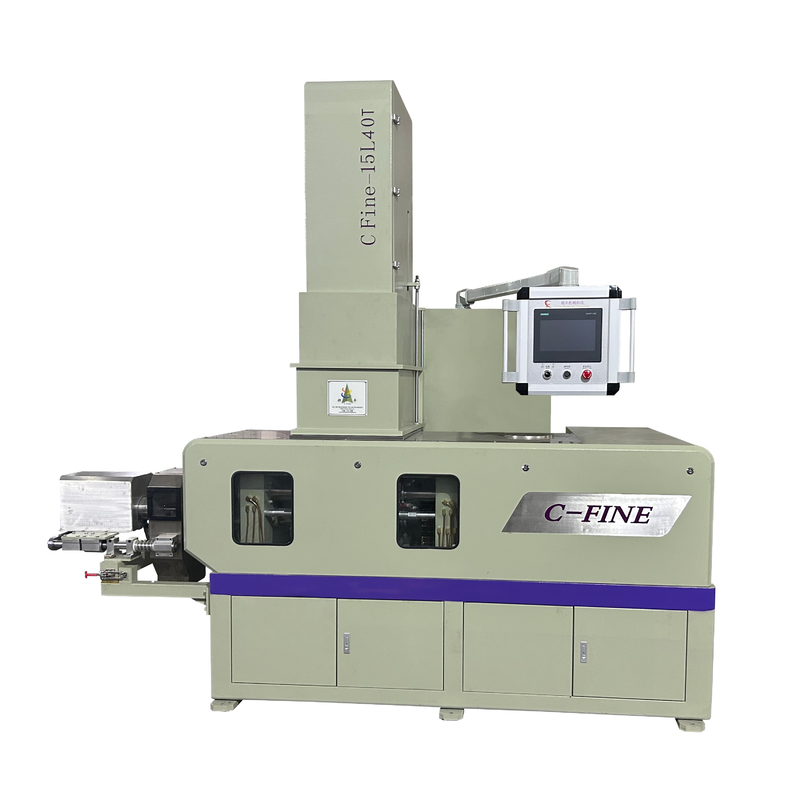

1L Capacity Combined Mixer Granulator Machine With Alloy Constructed

Custom 1L Low Price Consumption Combined Mixer-Granulator

Product brief introduction

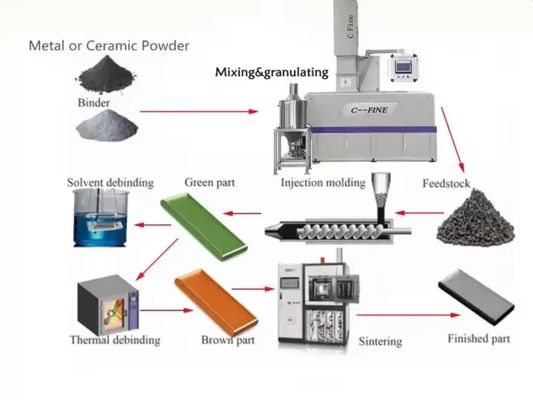

All material-contacting components of the mixer—including the chamber, side plate, pressure hammer, and blade shaft—are constructed entirely from alloy, eliminating the need for spraying or electroplating. The equipment is suitable for stirring, dispersing, and blending metal powders as well as binder-based formulations under controlled temperatures. Once the mixture forms a mud-like mass, it is extruded and granulated after a set period before moving on to the next stage of processing.

Technical Data

Working Principle of Internal Mixer

The mixer’s two rotors turn at different speeds, pulling material from the inlet and forcing it into the gap where it is squeezed and sheared. Afterward, the mixture hits the chamber’s “W”-shaped ridge, splitting into two flows that move along the chamber walls and rotors before returning to the top. In the sealed chamber, the combination of pressure, heat, and shear produces thorough mixing and plasticization, helping the formula reach its best results.

Mixing System

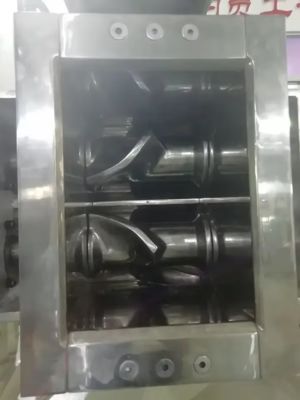

The mixing chamber is "W" shaped, and adopts an "M" shaped lower pressure cover to form a fully enclosed mixing space. The stirring blade adopts a prismatic spiral design without dead angles, so that the material shearing and dispersion can meet the physical property requirements. The stirring blade is a hollow structure, and the part in contact with the material (mixing chamber/side plate/pressure hammer/stirring blade shaft) is made of full alloy material (no need for spraying or electroplating), which is wear-resistant, corrosion-resistant, not easy to stick to the material, and has a long service life.

Product Superiority

1. The motor and electrical components adopt a fully sealed structure, which is waterproof and dustproof.
2. The oil outlet is equipped with a pressure gauge, which automatically alarms when the pressure is too high.
3. The oil storage tank is out of oil.
4. The oil filling operation cycle-the single oil filling time can be set on the control panel.

5. A dust and odor-proof collection shield is installed above the mixing tank, with an air outlet to facilitate the connection of the factory dust collection system, effectively reducing the harm of dust and harmful gases to operators.

6. Thermal insulation system.

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
