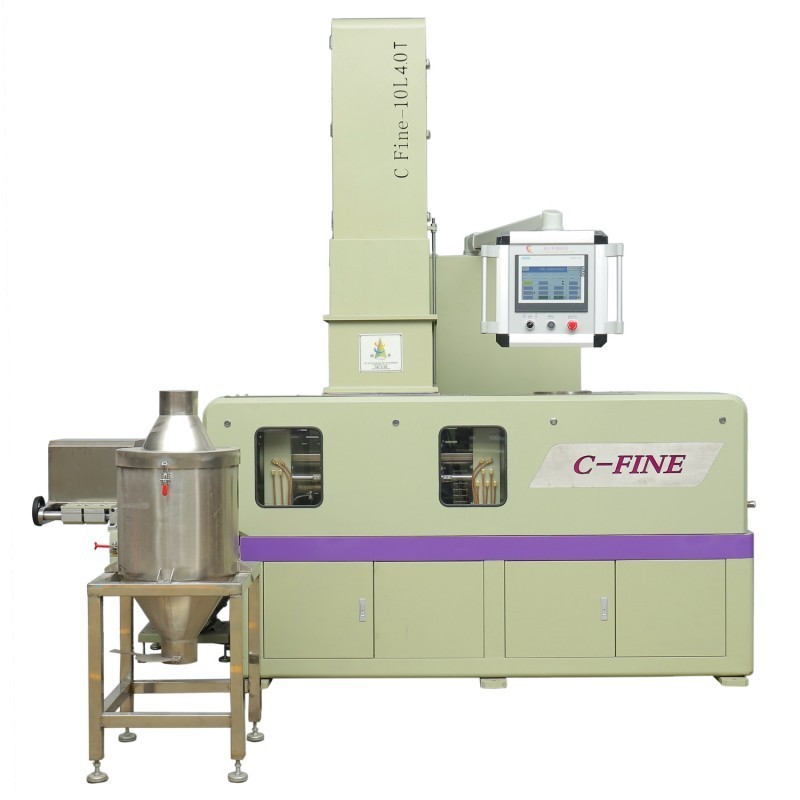

Custom 15L Capacity Combined Mixer Granulator Electric Heating Cooling

Custom 15L Low Price Consumption Combined Mixer-Granulator

Product brief introduction

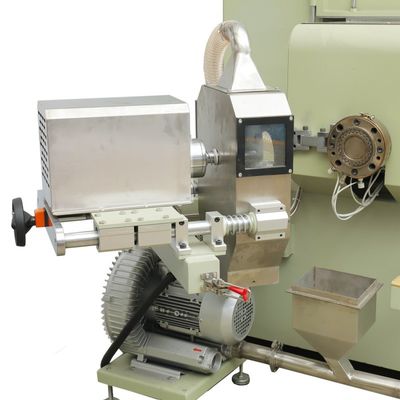

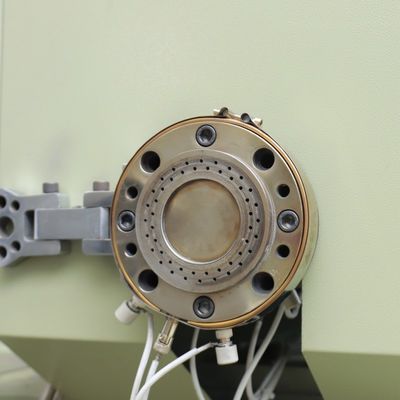

Crafted entirely from wear-resistant alloy, the mixer’s key contact parts (chamber, hammer, side plate, and blade shaft) require no spraying or electroplating treatment. Engineered for precise stirring, dispersing, and blending of metal powders and binder formulations within defined temperature ranges, the system discharges the material once it transforms into a mud-like consistency. It then extrudes and granulates the batch, seamlessly preparing it for the next process.

Technical Data

Working Principle of Internal Mixer

Inside the mixing chamber, the two rotors rotate at a specific speed ratio, drawing the feed material into the nip where it is subjected to squeezing and shearing forces. After passing through the gap, the material strikes the sharp “W” edge of the chamber and is divided into two streams, which flow along the clearances between the chamber walls and the rotors before returning to the rotor top. Within the sealed chamber, the mixture experiences strong shear and blending under controlled pressure and temperature, ensuring thorough dispersion and plasticization of the formulation for optimal performance.

Mixing System

The mixing chamber is "W" shaped, and adopts an "M" shaped lower pressure cover to form a fully enclosed mixing space. The stirring blade adopts a prismatic spiral design without dead angles, so that the material shearing and dispersion can meet the physical property requirements. The stirring blade is a hollow structure, and the part in contact with the material (mixing chamber/side plate/pressure hammer/stirring blade shaft) is made of full alloy material (no need for spraying or electroplating), which is wear-resistant, corrosion-resistant, not easy to stick to the material, and has a long service life.

Product Superiority

1. The motor and electrical components adopt a fully sealed structure, which is waterproof and dustproof.
2. The oil outlet is equipped with a pressure gauge, which automatically alarms when the pressure is too high.
3. The oil storage tank is out of oil.
4. The oil filling operation cycle-the single oil filling time can be set on the control panel.

5.A dust and odor-proof collection shield is installed above the mixing tank, with an air outlet to facilitate the connection of the factory dust collection system, effectively reducing the harm of dust and harmful gases to operators.

6.Thermal insulation system.

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
