Custom Low Price Production Banbury Kneader Internal Mixer
Product brief introduction

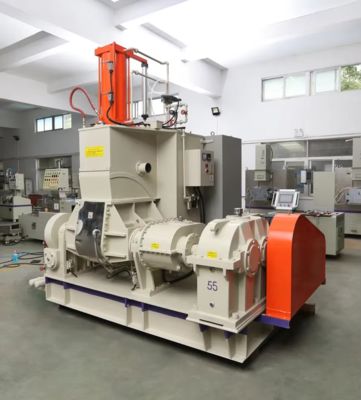

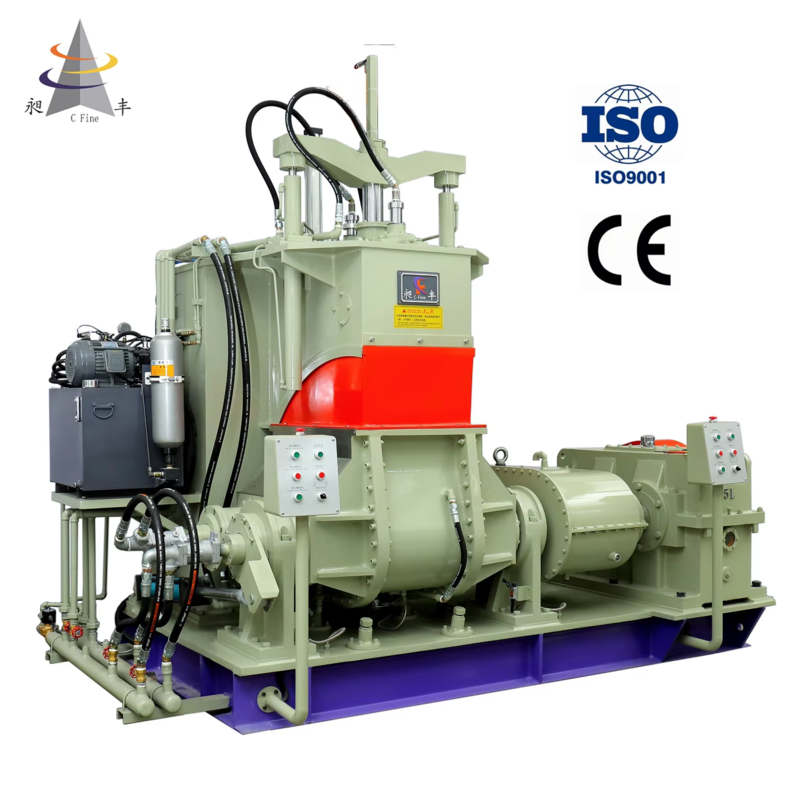

25L internal mixer is suitable for mixing, kneading and dispersing various chemical raw materials such as EVA, rubber, synthetic rubber, hot melt adhesive, etc., and then putting the experimental ratio formula into the production line. The equipment is sturdy and wear-resistant, and ensures that the material mixing is uniform and the physical property changes are achieved to achieve the best effect of year-on-year mixing.
Technical Data
| |
CF-25L |
CF-35L |
CF-55L |
CF-75L |
CF-110L |
CF-150L |
Total Volume of
Mixing Chamber |
L |
45 |
75 |
125 |
180 |
250 |
380 |
Working Capacity
of Mixing |
L |
25 |
35 |
55 |
75 |
110 |
150 |
| Driving Motor Power |
kw |
37 |
55 |
75 |
110 |
160 |
220 |
| Tilting Angle |
O |
110 |
110 |
110 |
110 |
110 |
110 |
Rotational Speed
of the Protor(front/rear) |
r/min |
38/32 |
38/32 |
38/32 |
38/32 |
38/32 |
38/32 |
| Air Compression Pressure |
MPa |
≥0.6-0.8 |
≥0.6-0.8 |
≥0.6-0.8 |
≥0.6-0.8 |
≥0.6-0.8 |
≥0.6-0.8 |
| Net Weight |
kg |
4000 |
6300 |
7500 |
10300 |
14200 |
18000 |
| Product Size |
mm |
2750*1750*2750 |
2900*2000*3000 |
3450*2300*3400 |
3600*2300*3900 |
3800*2550*3900 |
4700*3350*4000 |
Working Principle of Internal Mixer

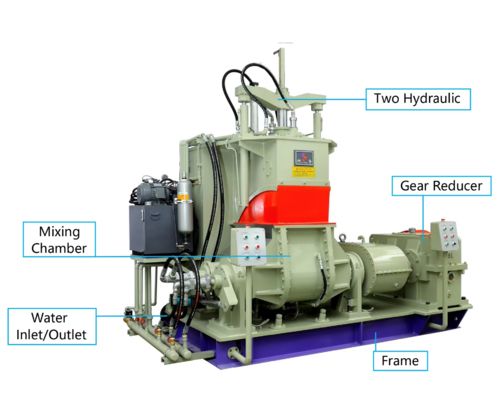

The two rotors in the mixing chamber rotate relative to each other under a certain speed ratio, clamping the material from the feeding port and bringing it into the roller gap to be squeezed and sheared by the rotors. After passing through the roller gap, it hits the sharp edge of the mixing chamber "W" and is divided into two parts, respectively along the gap between the front and rear chamber walls and the rotors and then returns to the top of the rotor. In the closed mixing chamber, the material is strongly sheared and mixed under certain pressure and temperature conditions, so that the formula materials are fully dispersed and plasticized, so that the formula can play the best effect.
Product Superiority
1. Using elliptic shear rotor,the surface of the rotor is coated by wear-resistant surfacing hard alloy,chromate plated for the inside of the mixer chamber surface,abrasion resistant and corrosion resistance,and increase the useful life.
2. Adopted circulation channel structure to achieve the heat conduction medium circulation for the rotor,the mixer chamber and the top peg.According to different requirements of production process,via steam,oil,electric heater or cooling water to cooling or heating.
3. Advance sealing system.
4. The top peg put pressure to the material by cylinder,forced to knead the material evenly to increase productivity.The electric controlling system is adopted the famous brand in China,controlled by manual or automatic,easy to shift and operate reliably.
Technical advantages
A. Changfeng's anti-leakage powder device adopts mechanical shaft seal tightening technology and uses a self-lubricating seal ring to keep the seal ring in a compressed and sealed state during the mixing process. The self-lubricating seal ring further reduces the wear of the mixing system and can more effectively reduce the noise such as whistling caused by leakage and poor sealing.
B. The interior of the mixing chamber adopts a complex tube belt design with good heat exchange and precise temperature control. The rotor adopts water cooling to effectively prevent sticky materials, control temperature accurately, and make the material dispersed more evenly.
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
