Custom Small 2-Inch Two Roll Mill Machine in Desktop Type

Custom Small 2-Inch Two Roll Mill Machine in Desktop Type
Custom Small 2-Inch Two Roll Mill Machine in Desktop Type Custom Small 2-Inch Two Roll Mill Machine in Desktop Type Custom Small 2-Inch Two Roll Mill Machine in Desktop Type Custom Small 2-Inch Two Roll Mill Machine in Desktop Type Custom Small 2-Inch Two Roll Mill Machine in Desktop Type

Large Image :  Custom Small 2-Inch Two Roll Mill Machine in Desktop Type

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-68
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5700~$7000
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Custom Small 2-Inch Two Roll Mill Machine in Desktop Type

Description
Control Type: CNC Automatic Grade: Automatic
Power Source: Electric Cooling Mode: Water Cooling
Roller Specification: 68mm×L200mm Maximum Roll Distance: 0-5mm
Drum Rotation Speed: 0-30r/Min Speed Ratio: 1:1.24
Main Motor: 1.5kw Overall Weight: 35 Kg
Dimensions: 420*250*350mm Roller Hardness: HRC55-62
Electrical Heating: 0.75kw Water Cooling Power: 3.75kw
Highlight:

small 2-inch two roll mill

,

desktop type two roll mill

,

custom two roll mill machine

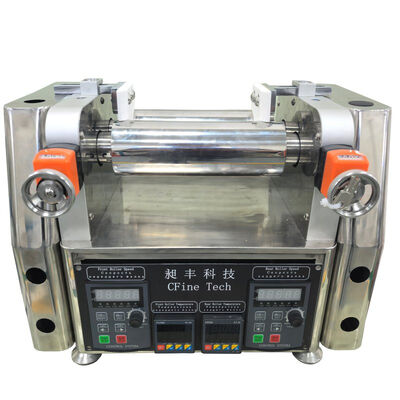

Custom Small 2-Inch Two Roll Mill Machine
This experimental desktop-type open mixer mill is engineered for mixing and dispersing engineering plastics, pigment masterbatch, silicone rubber, and various polymers. Featuring mirror-chromed double rollers with electric heating and water cooling capabilities, it ensures uniform surface temperature and adjustable roller spacing. Multi-directional safety protection devices guarantee safe, reliable, and durable operation.
Product Superiority
  • Two rollers crafted from mirror high carbon steel with hardness HRC55-62
  • Taiwan Fotek temperature controller for stable performance
  • Customized high-quality heating tubes with extended lifespan
  • Roller gap design prevents material from entering heating tubes
Key Configurations
  • Gearmotor: CPG brand featuring compact size, lightweight, low noise, high protection level, and superior overload capacity
  • PLC: Full series equipped with Programmable Logic Controller for programmable operation
  • Swivel Joint: Spark-free operation, no aging, stable temperature display
  • Temperature Controller: Original imported RKC digital temperature controller
  • Shilin Contactor: Exceptional lifespan and strong environmental adaptability
Custom Small 2-Inch Two Roll Mill Machine in Desktop Type 0
Technical Specifications
Custom configurations available upon request.
Model CF-120 CF-160 CF-200 CF-230 Remarks
Diameter of Barrel (mm) 120 160 200 230 Length of barrel can be customized
Length of Barrel (mm) 350 350 520 620
Batch Feeding 500g~800g 800g~1500g 1500g~2600g 3000g~5000g
Electrical Heating (kw) 0.75 1.5 3.75 3.75
Water Cooling (kw) 3.75 5.5 7.5 11
Weight (KG) 400 600 850 1100
Available Styles
Multiple styles available for selection with custom options supported.
Custom Small 2-Inch Two Roll Mill Machine in Desktop Type 1 Custom Small 2-Inch Two Roll Mill Machine in Desktop Type 2 Custom Small 2-Inch Two Roll Mill Machine in Desktop Type 3
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours (whichever comes first)
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training

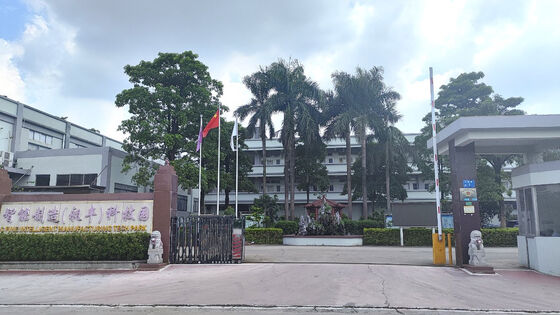

Company Profile
Custom Small 2-Inch Two Roll Mill Machine in Desktop Type 4
Guangdong CFine Technology Co., Ltd. specializes in designing, R&D, manufacturing, selling, and maintaining plastic, rubber, and powder metallurgy mixing and granulating equipment. Our professional R&D team meets special customer requirements for custom machine solutions. With strong technical capabilities, advanced equipment, and a skilled manufacturing team, we employ modern management practices and provide swift after-sales service. Our machines are globally distributed and have established long-term cooperative relationships with satisfied clients.
Quality first, service uppermost is our guideline. Honesty, integrity, innovation, and contribution define our principles. CFine is becoming the most professional and influential manufacturer in the industry, with the CFine brand growing in popularity both in China and internationally.
Custom Small 2-Inch Two Roll Mill Machine in Desktop Type 5
Why Choose CFine Technology?
Company Strength
15 Years OEM&ODM Experience
11.16 Million Registered Capital
10,000m³ Plant Area
Certificates of Honor
32 Patent Certificates
Team of Five Designers
Independent Laboratory
Professional Team
1-to-1 Professional Guidance
24-Hour Customer Service
1 Year Warranty

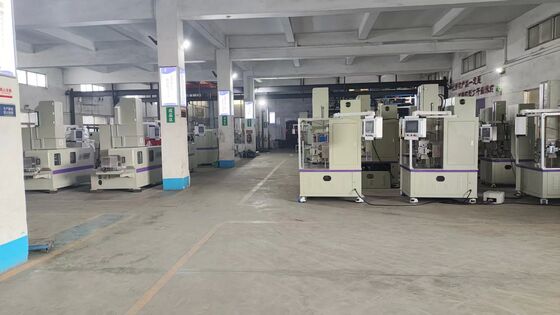

Production Workshop
15 Years as Source Factory
30 Days On-Time Delivery
100-Strong Production Team
Custom Small 2-Inch Two Roll Mill Machine in Desktop Type 6
Frequently Asked Questions
What About The Delivery Date?
  • Payment term: 50% deposit, 50% before shipment
  • Delivery term: FOB or Ex-work
  • Delivery time: 30-70 days after receipt of deposit, depending on machine specifications
What's The Warranty Statement?
Free warranty for normal use for one year. Spare parts are available at competitive prices.
What About CFine After-Sales Service?
  • Engineers available for installation and worker training for international clients
  • Professional team dedicated to solving after-sales problems
  • Spare parts supplied at reasonable prices after warranty period
  • Continuous technology updates provided to all customers
