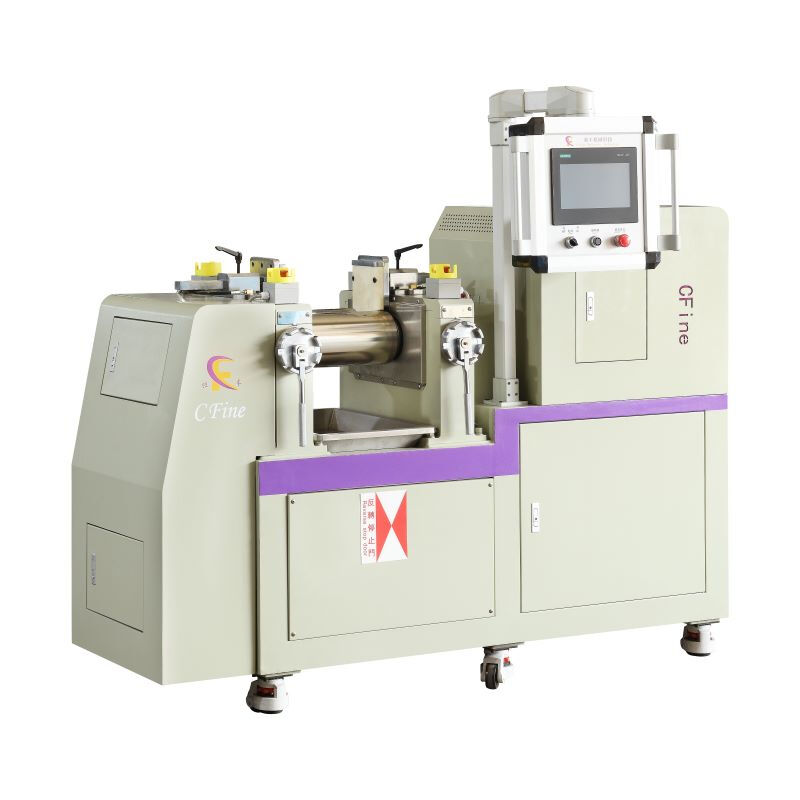

Custom CF-230 Two Roll Mill Rubber Machine

Custom CF-230 Two Roll Mill Rubber Machine
Custom CF-230 Two Roll Mill Rubber Machine Custom CF-230 Two Roll Mill Rubber Machine Custom CF-230 Two Roll Mill Rubber Machine Custom CF-230 Two Roll Mill Rubber Machine Custom CF-230 Two Roll Mill Rubber Machine

Large Image :  Custom CF-230 Two Roll Mill Rubber Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-230
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15000~$18000
Contact Now Chat Now

Custom CF-230 Two Roll Mill Rubber Machine

Description
Control Type: PLC Automatic Grade: Automatic
Power Source: Electric Cooling Mode: Water Cooling
Roller Specification: 230mm×L620mm Maximum Roll Distance: 0.1-10mm
Drum Rotation Speed: 0-30r/Min Speed Ratio: 1:1.24
Main Motor: 16kw Overall Weight: 1300 Kg
Dimensions: 1500*1000*1600mm Batch Feeding: 3000g~5000g
Electrical Heating: 3.75kw Water Cooling: 11kw
Highlight:

Custom CF-230 rubber mixing mill

,

Two roll mill rubber machine

,

CF-230 rubber processing equipment

Custom CF-230 Two Roll Mill Rubber Machine
This experimental type open mixer mill is designed for mixing and dispersing engineering plastics, pigment masterbatch, silicone rubber, and other polymers. The double rollers feature mirror-chromed surfaces with electric heating and water cooling capabilities, ensuring uniform surface temperature. The space between rollers is adjustable, and multi-directional safety protection devices provide safe, reliable, and durable operation.
Product Superiority
  • Two rollers made of mirror high carbon steel with hardness HRC55-62
  • Taiwan Fotek temperature controller for stable quality performance
  • Customized high-quality heating tubes with extended lifespan
  • Roller gap design prevents material from entering heating tubes
Key Configurations
  • Gearmotor: CPG brand featuring compact size, lightweight, low noise, high protection level, and strong overload capacity
  • PLC: Full series equipped with Programmable Logic Controller for program control
  • Swivel Joint: Spark-free operation, no aging, stable temperature display
  • Temperature Controller: Original imported RKC digital temperature controller
  • Shilin Contactor: Long lifespan with strong adaptability
Custom CF-230 Two Roll Mill Rubber Machine 0
Technical Specifications
Custom configurations available upon request.
Model CF-120 CF-160 CF-200 CF-230 Remarks
Diameter of Barrel (mm) 120 160 200 230 Length of barrel can be customized
Length of Barrel (mm) 350 350 520 620
Batch Feeding 500g~800g 800g~1500g 1500g~2600g 3000g~5000g
Electrical Heating (kw) 0.75 1.5 3.75 3.75
Water Cooling (kw) 3.75 5.5 7.5 11
Weight (KG) 400 600 850 1100
Available Styles
Multiple styles available for selection, custom designs supported.
Custom CF-230 Two Roll Mill Rubber Machine 1
Custom CF-230 Two Roll Mill Rubber Machine 2
Custom CF-230 Two Roll Mill Rubber Machine 3
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours (whichever comes first)
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training
Company Profile

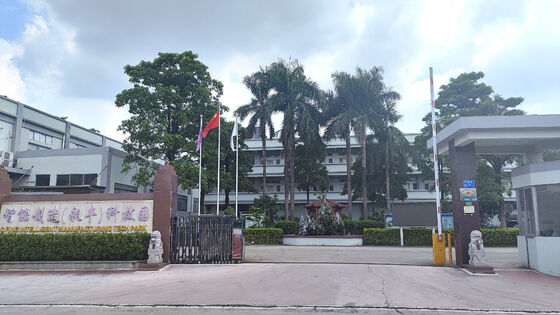

Custom CF-230 Two Roll Mill Rubber Machine 4
Guangdong CFine Technology Co., Ltd.
Guangdong CFine Technology Co., Ltd. is a specialized manufacturer designing, researching, developing, manufacturing, selling, and maintaining plastic, rubber, and powder metallurgy mixing and granulating equipment. Our professional R&D team meets special customer requirements for custom machine solutions. With strong technical capabilities, comprehensive advanced equipment, well-trained manufacturing teams, and modern management, we provide convenient and swift after-sales service. Our machines are sold worldwide and have established long-term, stable cooperative relationships.
Quality first, service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. CFine is becoming the most professional and influential manufacturer in this industry, with the CFine brand growing in popularity both in China and internationally.
Custom CF-230 Two Roll Mill Rubber Machine 5
Why Choose Us?
Company Strength
15 Years OEM&ODM Experience
11.16 Million Registered Capital
10,000m³ Plant Area
Certificates of Honor
32 Patent Certificates
A Team of Five Designers
Independent Laboratory
Professional Team
1 to 1 Professional Guidance
24-Hour Customer Service
1 Year Warranty

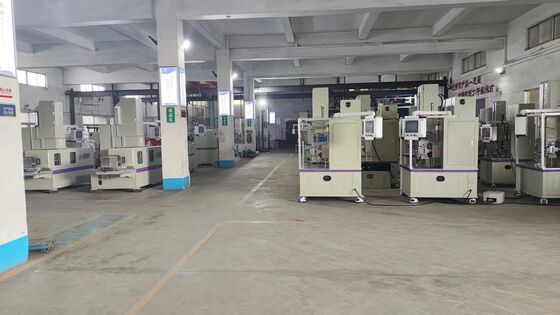

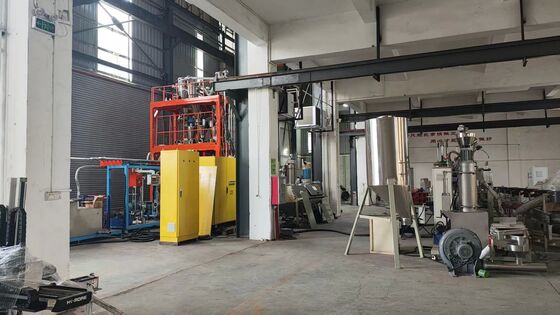

Production Workshop
15 Years as a Source Factory
30 Days On-Time Delivery
100-Strong Production Team
Custom CF-230 Two Roll Mill Rubber Machine 6
Frequently Asked Questions
What About The Delivery Date?
Payment term: 50% deposit, 50% before shipment
Delivery term: FOB or Ex-work
Delivery time: 30-70 days after receipt of deposit, depending on machine specifications
What's The Warranty Statement?
Free warranty for normal use for one year. Spare parts are available at competitive prices.
What About CFine After-Sales Service?
• We arrange engineers to install machinery and train workers for international clients when required
• A professional team provides comprehensive after-sales problem solving
• We supply spare parts at competitive prices after warranty period
• We continuously update and share new technology with all customers
