Custom 4kw Lab Blown Film Machine 6 Zone Heating

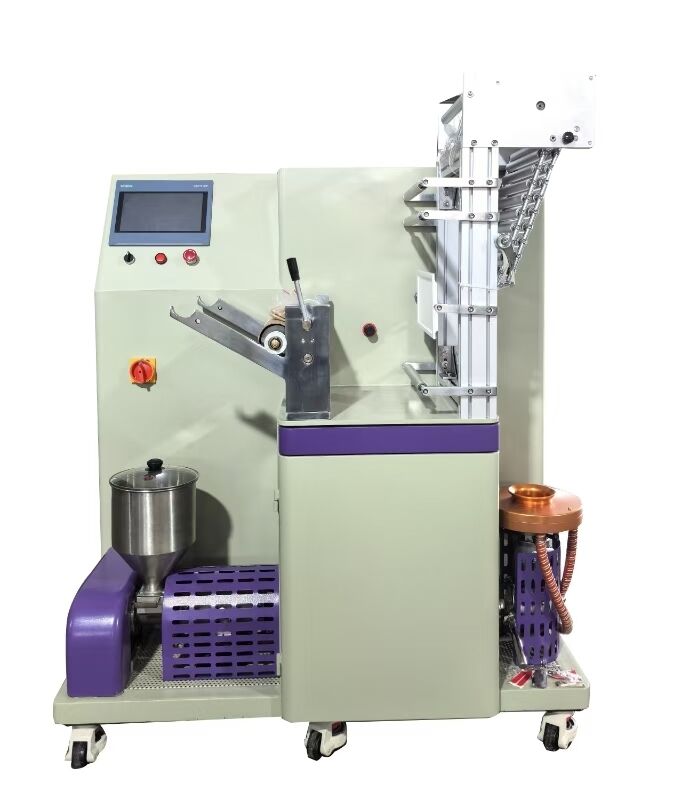

Large Image : Custom 4kw Lab Blown Film Machine 6 Zone Heating

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	CFine
Certification:	CE,ISO 9001
Model Number:	CF-25

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$14285~$15000
Packaging Details:	Wooden cases
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Custom 4kw Lab Blown Film Machine 6 Zone Heating

Description

Screw Diameter:	25mm	Selectable L/D:	33：1
Screw RPM:	0~95rpm Variable Frequency Speed Control	Heating Zone:	6 Zone Heating
Main Motor:	4kw	Control System:	PLC Program Control + 10-inch Color Touch Screen
Size:	L1300W800H1400mm	Power Supply:	3∮ AC380V 15A
Weight:	About 400KG
Highlight:	Custom Lab Blown Film Machine , 4kw Lab Blown Film Machine , 6 Zone Heating Blown Film Machine

Custom Lab Blown Film Machine

Technical Data

	CF-20	CF-30
Screw Diameter	20mm	30mm
Selectable L/D	33:1
Screw RPM	0~100rpm Variable frequency speed control
Heating Zone	6 Zone Heating
Main Motor	2.2kw~5.5kw
Control System	PLC program control + 10-inch color touch screen
Size	L1300W800H1400mm
Power Supply	3∮ AC380V 15A
Weight	About 400KG

Product Superiority

Extrusion blown film refers to the process of extruding the plastic melt continuously through the mouth die under the action of certain temperature and certain shear force, and the bifold plastic film obtained by compressed air blowing, wind ring cooling and frequency traction.
The equipment is suitable for testing the blown film viability of polymer materials and the gelatinous condition within the material, as well as the dispersion of colored dispersions, control blends, and extrudates.

Custom 4kw Lab Blown Film Machine 6 Zone Heating 0
