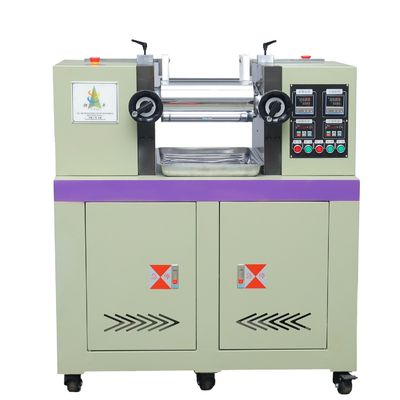

Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers

Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers
Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers
Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers

Large Image :  Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $11700-$18900
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers

Description
Frequency Converter: Dual Inverter Weight: 600KG
Diameter Of Barrel: 160mm Length Of Barrel: 350mm
Batch Feeding(depending On Material): 800g~1500g Electrical Heating(Main Motor): 1.5kw
Water Cooling(Main Motor): 5.5kw Speed Ratio: 1:1.24
Highlight:

Open Type Rubber Mixing Mill

,

Rubber Mixing Mill 6 Inch

Custom 6-inch Dual Inverter Open Mixing Mill



Product brief introduction

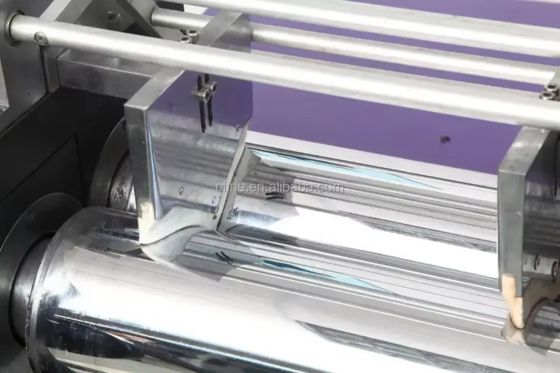

This experimental open-type mixer mill is designed for the mixing and dispersion of engineering plastics, pigment masterbatches, silicone rubber, and other polymers. It features double rollers with mirror-chromed surfaces, equipped with electric heating and water cooling systems to ensure uniform surface temperatures. The gap between the two rollers is adjustable to accommodate various processing needs. Additionally, the machine is equipped with multi-directional safety protection devices, making it safe, reliable, and durable in operation.





Mixing Mill Technical Data

  CF-120 CF-160 CF-200 CF-230 Remarks
Diameter of Barrel(mm) 120 160 200 230 Can be customized according to customer requirements
Length of Barrel(mm) 350 350 520 620
Batch Feeding(g) 500~800 800~1500 1500~2600 3000~5000
Electrical Heating(kw) 0.75 1.5 3.75 3.75
Water Cooling(kw) 3.75 5.5 7.5 11
Weight(KG) 400 600 850 1100





Product Superiority

1. Two rollers made of mirror high carbon steel,hardness is HRC55-62

2. Taiwan Fotek temperature controller with stable quality

3. Customized good quality heating tube with long lifetime

4. Roller gap prevent material enter heating tube

Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers 0

Dual Inverter Open Type Rubber Mixing Mill 6 Inch With Double Rollers 1
