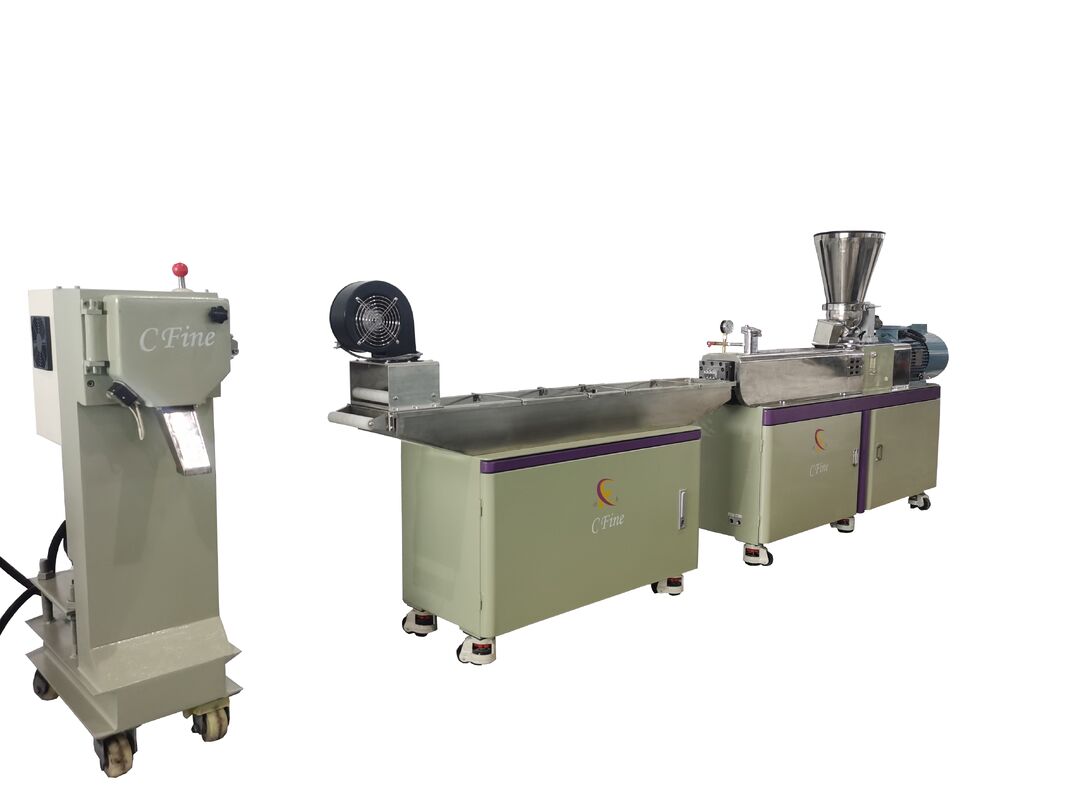

Custom Screw Diameter 35mm Twin Screw Granulator Machine

Large Image : Custom Screw Diameter 35mm Twin Screw Granulator Machine

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	CFine
Certification:	CE,ISO 9001
Model Number:	CF-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$16000-$20000
Packaging Details:	Wooden cases
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

Custom Screw Diameter 35mm Twin Screw Granulator Machine

Description

Gauge Of The Screw Rod:	35MM	Draw Ratio:	40:1
Material Of The Screw Element:	W6MO5Cr4V2 High-speed Tool Steel	Material Of The Screw Core Shaft:	40CrNiMoA
Screw Hardness:	HRC62~64	Main Motor Power:	TECO
Main Screw Speed:	60~400RPM	Water-cooling System:	2.5 Meters 304 Stainless Steel Sink
Shearing Machine Power:	4KW	Material Of The Barrel:	38CrMoAlA Nitriding Steel
Highlight:	custom granulator machine , 35mm granulator machine , twin screw granulator machine

Custom Screw Diameter 35mm Twin Screw Granulator Machine

Manufacturer Custom Twin-screw Granulator Machine

Technical Specifications

Specification	CF-20 Model	CF-35 Model
Screw Diameter	21.7mm	35mm
Draw Ratio	40:1
Main Motor	4KW	18.5KW/22KW
Reduction Gearbox	Reduction Ratio 2.5:1	Reduction Ratio 3:1
Maximum Speed	Design: 500 RPM Actual: 385 RPM	Design: 800 RPM Actual: 480 RPM
Cooling Type	Sink Cooling / Conveyor Belt Cooling
Sink Cooling	1.2 meters of 304 Stainless Steel	2.5 meters of 304 Stainless Steel
Conveyor Belt Cooling	3-meter Air-cooled Conveyor Belt	6-meter Air-cooled Conveyor Belt

After-Sales Service & Support

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.

Note: Electrical components and motors are imported from Taiwan and foreign brands.
