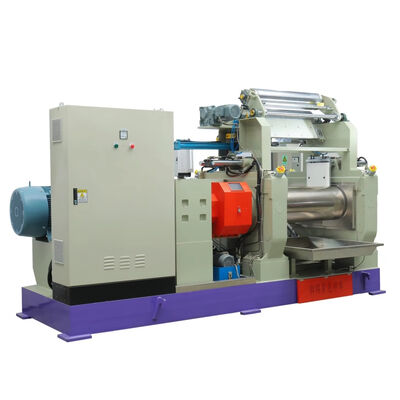

Custom Production Type Rubber Open Mixing Mill
An open mixing mill is a batch mixer for plastic and rubber compounds. It features two rollers running in opposite directions, with adjustable spacing between them. The machine homogenizes and plasticizes raw materials before delivery to the calender. In rubber mixing, rollers exert compression and shear forces, repeatedly kneading the rubber to blend components and induce chemical reactions that reduce molecular chain length, ensuring even dispersion and plasticization.

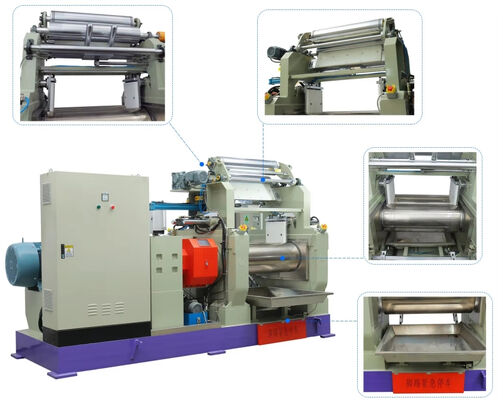

Product Superiority
- Bearing Seat: High-quality steel precision casting processed with high-precision CNC for strong load-bearing capacity and excellent seismic resistance
- Bearing Lubrication: Forced circulation lubricating oil system reduces manual maintenance requirements
- Base: High-quality steel plate welded construction with integrated structure and superior seismic resistance
- Roller Pitch Adjustment: Customizable electric or oil pressure adjustment based on customer requirements

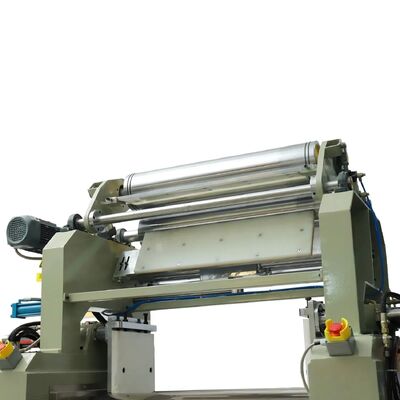

- Rubber Flipping: Optional automatic glue flipping system to reduce manual labor intensity
- Operation: Easy to operate and maintain for optimal efficiency

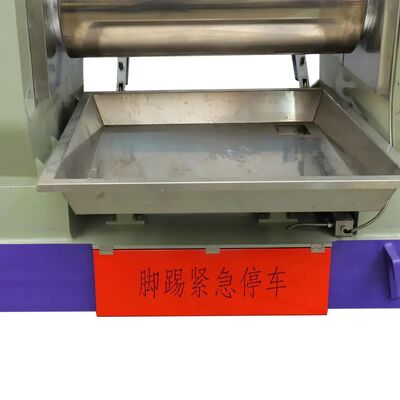

- Safety: Emergency stop buttons installed front and back for quick shutdown capability
Key Configurations
- Gearmotor: CPG brand featuring compact size, lightweight, low noise, high protection level, and strong overload capacity
- PLC: Full series equipped with Programmable Logic Controller for program control
- Swivel Joint: Spark-free operation, no aging, stable temperature display
- Temperature Controller: Original imported RKC digital temperature controller
- Shilin Contactor: Long lifespan with strong environmental adaptability
Technical Specifications
Custom configurations available upon request.
| Specifications |
12" |
14" |
16" |
18" |
22" |
24" |
26" |
| Capacity |
5-20kg/T |
20-25kg/T |
25-35kg/T |
30-50kg/T |
50-60kg/T |
120-130kg/T |
160-170kg/T |
| Roller |
300×700mm |
360×920mm |
400×1000mm |
450×1200mm |
550×1530mm |
610×1830mm |
660×2130mm |
| Speed Ratio |
1:1.27 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.29 |
1:1.29 |
1:1.29 |
| Roller Spacing |
0.5-10mm |
0.5-10mm |
0.5-15mm |
0.5-15mm |
0.5-15mm |
0.5-15mm |
0.5-15mm |
| Main Motor |
22kw |
37kw |
55kw |
75kw |
110kw |
160kw |
220kw |
| Weight |
4000kg |
5100kg |
7500kg |
11000kg |
17500kg |
25000kg |
32000kg |
| Size(mm) |
L2745×W1275×H1657 |
L3700×W1425×H1870 |
L4000×W1500×H1870 |
L4550×W1660×H2015 |
L5360×W1946×H2200 |
L6100×W2050×H2200 |
L6240×W3350×H2670 |
Available Styles
The following styles are available for selection, custom designs supported.
After Sales Service
- Standard Warranty: 12 months or 2,000 operating hours (whichever comes first)
- Global Support: 24/7 technical assistance and spare parts supply
- Training: On-site or remote operation/maintenance training

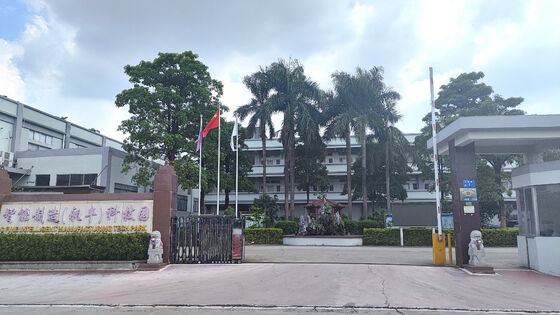

Company Profile
Guangdong CFine Technology Co., Ltd.
Guangdong CFine Technology Co., Ltd. is a manufacturer specializing in designing, R&D, manufacturing, selling, and maintaining plastic, rubber, and powder metallurgy mixing and granulating equipment. Our professional R&D team meets special customer requirements for custom machine solutions. With strong technical strength, comprehensive advanced equipment, and well-trained manufacturing teams supported by modern management and swift after-sales service, our machines are sold worldwide and have earned consistent client appreciation, establishing long-term stable cooperative relationships.
Quality first, service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. CFine is becoming the most professional and influential manufacturer in this industry, with the CFine brand growing in popularity in China and expanding globally.
Why Choose Us?
Company Strength
15 Years OEM&ODM Experience
11.16 Million Registered
10000m³ Plant Area
Certificates of Honor
32 Patent Certificates
Team of Five Designers
Independent Laboratory
Professional Team
1 to 1 Professional Guidance
24-Hour Customer Service
1 Year Warranty
Production Workshop
15 Years as Source Factory
30 Days On-Time Delivery
100-Strong Production Team
Frequently Asked Questions
What About The Delivery Date?
Payment Term: 50% deposit, 50% before shipment
Delivery Term: FOB or Ex-work
Delivery Time: 30-70 days after receipt of deposit, depending on machine specifications
What's The Warranty Statement?
Free warranty for normal use for one year. Spare parts are available at competitive prices.
What About CFine After-Sales Service?
1. We arrange engineers to install machinery and train workers for international clients when required
2. Professional team provides comprehensive after-sales problem solving
3. We supply spare parts at competitive prices after warranty period
4. We continuously update customers with new technology developments
