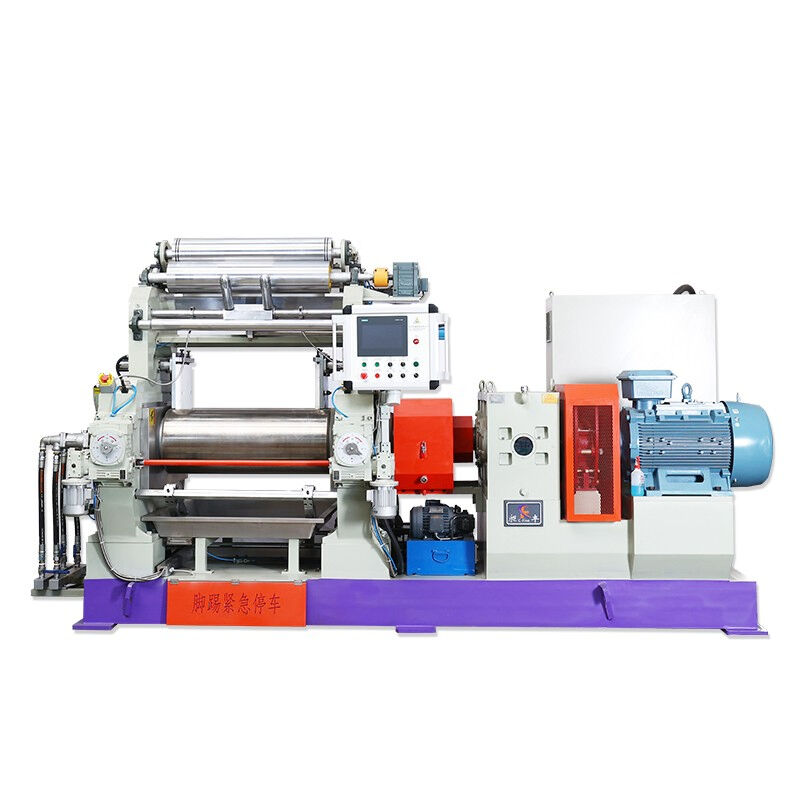

Custom 18-Inch 75kw Rubber Open Mixing Mill Machine
An open mixing mill is a batch mixer for plastic and rubber compounds. It features two rollers running in opposite directions, with adjustable spacing between them. The machine homogenizes and plasticizes raw materials before calendering. In rubber mixing, the rollers exert compression and shear forces, kneading the rubber repeatedly to blend components and induce chemical reactions that ensure even dispersion and plasticization.
Product Superiority
- Bearing Seat: High-quality steel precision casting processed with CNC for strong load-bearing capacity and seismic resistance
- Bearing Lubrication: Forced circulation lubricating oil system reduces manual maintenance
- Base: High-quality steel plates welded together with integrated structure and good seismic resistance
- Roller Pitch Adjustment: Customizable electric or oil pressure adjustment
- Rubber Flipping: Optional automatic glue flipping system reduces manual labor intensity
- Operation: Easy to operate and maintain
- Safety: Emergency stop buttons installed front and back for quick shutdown
Key Configurations
- Gearmotor: CPG brand with small size, light weight, low noise, high protection level, and strong overload capacity
- PLC: Full series equipped with Programmable Logic Controller for program control
- Swivel Joint: No sparks, no aging, stable temperature display
- Temperature Controller: Original imported RKC digital temperature controller
- Shilin Contactor: Long lifespan and strong adaptability
Technical Specifications
Custom configurations available upon request.
| Specifications |
12" |
14" |
16" |
18" |
22" |
24" |
26" |
| Capacity |
5-20kg/T |
20-25kg/T |
25-35kg/T |
30-50kg/T |
50-60kg/T |
120-130kg/T |
160-170kg/T |
| Roller |
300×700mm |
360×920mm |
400×1000mm |
450×1200mm |
550×1530mm |
610×1830mm |
660×2130mm |
| Speed Ratio |
1:1.27 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.29 |
1:1.29 |
1:1.29 |
| Roller Spacing |
0.5-10mm |
0.5-10mm |
0.5-15mm |
0.5-15mm |
0.5-15mm |
0.5-15mm |
0.5-15mm |
| Main Motor |
22kw |
37kw |
55kw |
75kw |
110kw |
160kw |
220kw |
| Weight |
4000kg |
5100kg |
7500kg |
11000kg |
17500kg |
25000kg |
32000kg |
| Size(mm) |
L2745×W1275×H1657 |
L3700×W1425×H1870 |
L4000×W1500×H1870 |
L4550×W1660×H2015 |
L5360×W1946×H2200 |
L6100×W2050×H2200 |
L6240×W3350×H2670 |
Available Styles
The following styles are available for selection, custom configurations supported.
After Sales Service
- Standard Warranty: 12 months or 2,000 operating hours (whichever comes first)
- Global Support: 24/7 technical assistance and spare parts supply
- Training: On-site or remote operation/maintenance training
Company Profile
Guangdong CFine Technology Co., Ltd.
Guangdong CFine Technology Co., Ltd. is a manufacturer specializing in designing, R&D, manufacturing, selling, and maintaining plastic, rubber, and powder metallurgy mixing and granulating equipment. Our professional R&D team meets special customer requirements for custom machinery. With strong technical strength, advanced equipment, trained manufacturing teams, modern management, and swift after-sales service, our machines are sold worldwide and have established long-term cooperative relationships.
Quality first, service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. CFine is becoming the most professional and influential manufacturer in this industry, with the CFine brand growing in popularity globally.
Why Choose Us?
Company Strength
15 Years OEM&ODM Experience
11.16 Million Registered
10000m³ Plant Area
Certificates of Honor
32 Patent Certificates
A Team of Five Designers
Independent Laboratory
Professional Team
1 to 1 Professional Guidance
24-Hour Customer Service
1 Year Warranty

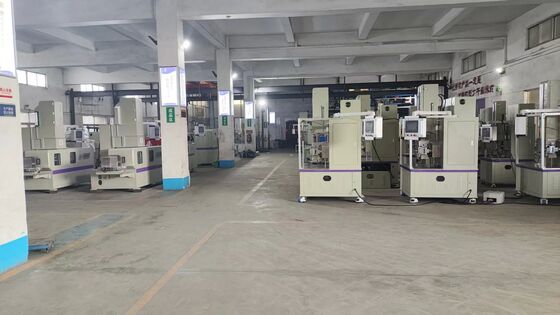

Production Workshop
15 Years as Source Factory
30 Days On-Time Delivery
100-Strong Production Team
Frequently Asked Questions
What About The Delivery Date?
- Payment Term: 50% deposit, 50% before shipment
- Delivery Term: FOB or Ex-work
- Delivery Time: 30-70 days after receipt of deposit, depending on machine specifications
What's The Warranty Statement?
Free warranty for normal use for one year. Spare parts are available at low prices.
What About CFine After-Sales Service?
- Engineers available for installation and worker training for international clients
- Professional team solves problems after-sales
- Spare parts supplied at low prices after warranty period
- Regular technology updates provided to all customers
