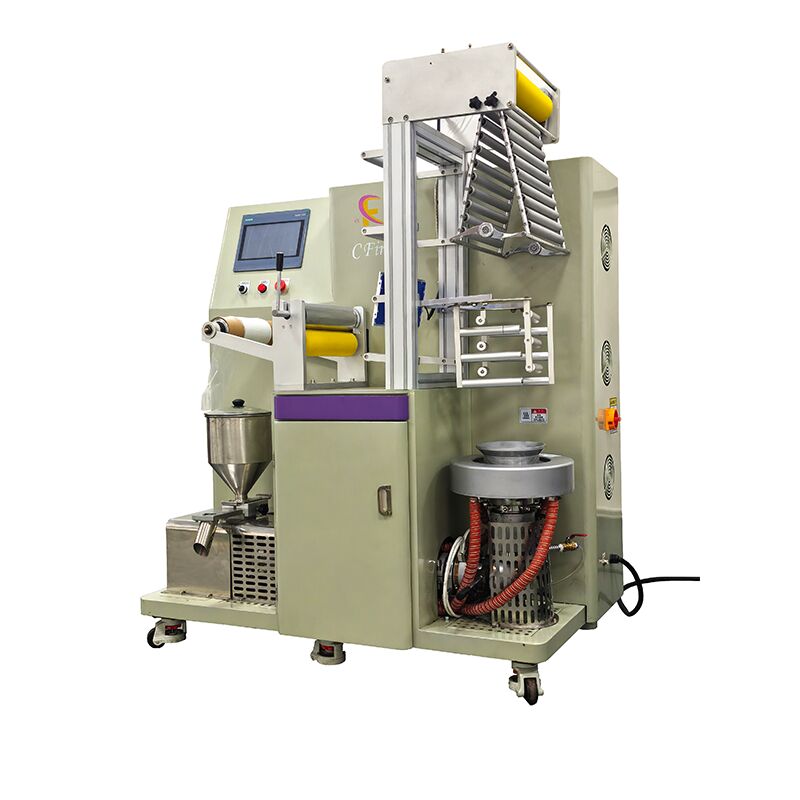

Factory Custom 4kw Lab Blown Film Machine

Factory Custom 4kw Lab Blown Film Machine
Factory Custom 4kw Lab Blown Film Machine
Factory Custom 4kw Lab Blown Film Machine Factory Custom 4kw Lab Blown Film Machine

Large Image :  Factory Custom 4kw Lab Blown Film Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $14285~$15000
Packaging Details: Wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Factory Custom 4kw Lab Blown Film Machine

Description
Screw Diameter: 25MM Selectable L/D: 33：1
Screw RPM: 0~95rpm Variable Frequency Speed Control Heating Zone: 6 Zone Heating
Main Motor: 4KW Control System: PLC Program Control + 10-inch Color Touch Screen
Size: L1300*W800*H1400MM Power Supply: 3∮ AC380V 15A
Weight: About 400kg

Custom Lab Blown Film Machine



Technical Data

  CF-20 CF-25 CF-30
Screw Diameter 20mm 25mm 30mm
Selectable L/D 28:1
Screw RPM 0~100rpm Variable frequency speed control
Heating Zone 6 Zone Heating
Main Motor 2.2kw~5.5kw
Control System PLC program control + 10-inch color touch screen
Size L1200*W500*H1450mm
Power Supply 3∮ AC380V 15A
Weight About 200KG





Product Superiority

In the extrusion blown film process, thermoplastic materials are melted and continuously extruded through a circular die under predetermined temperature and shear force conditions. The tubular film formation occurs through inflation with compressed air, simultaneous cooling via wind ring technology, and dimensional control by frequency-adjusted traction systems. This evaluation equipment enables analysis of polymer film production feasibility, internal gel detection, and quality assessment of pigment dispersion, blend consistency, and overall extrudate performance.



Factory Custom 4kw Lab Blown Film Machine 0



Tag:

Lab Blown Film Extruder,

Custom Lab Blown Film Machine,

Blown Film Machine
