Custom Lab Blown Film Machine PLC Program Control With 6 Zone Heating

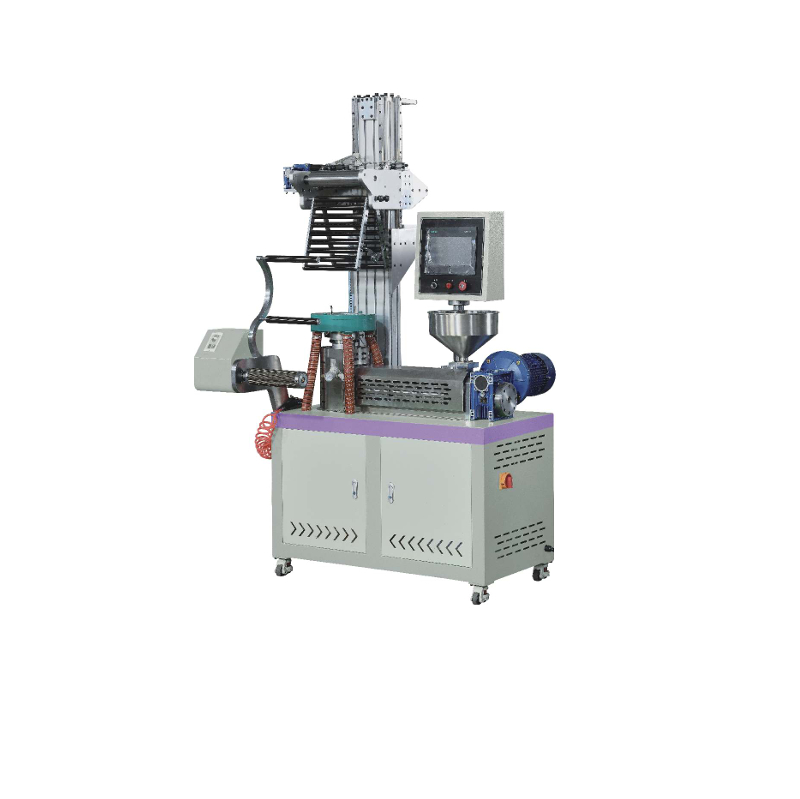

Large Image : Custom Lab Blown Film Machine PLC Program Control With 6 Zone Heating

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	CFine
Certification:	CE,ISO 9001
Model Number:	CF-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden cases
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Custom Lab Blown Film Machine PLC Program Control With 6 Zone Heating

Description

Screw Diameter:	20mm	Selectable L/D:	28：1
Screw RPM:	0~100rpm Variable Frequency Speed Control	Heating Zone:	6 Zone Heating
Main Motor:	2.2kw~5.5kw	Control System:	PLC Program Control + 10-inch Color Touch Screen
Size:	L1200W500H1450mm	Power Supply:	3∮ AC380V 15A
Weight:	About 200KG
Highlight:	Custom Lab Blown Film Machine , PLC Control Lab Blown Film Machine

Custom Lab Blown Film Machine

Technical Data

	CF-20	CF-30
Screw Diameter	20mm	30mm
Selectable L/D	28:1
Screw RPM	0~100rpm Variable frequency speed control
Heating Zone	6 Zone Heating
Main Motor	2.2kw~5.5kw
Control System	PLC program control + 10-inch color touch screen
Size	L1200W500H1450mm
Power Supply	3∮ AC380V 15A
Weight	About 200KG

Product Superiority

Extrusion blown film refers to the process of extruding the plastic melt continuously through the mouth die under the action of certain temperature and certain shear force, and the bifold plastic film obtained by compressed air blowing, wind ring cooling and frequency traction.
The equipment is suitable for testing the blown film viability of polymer materials and the gelatinous condition within the material, as well as the dispersion of colored dispersions, control blends, and extrudates.

Custom Lab Blown Film Machine PLC Program Control With 6 Zone Heating 0
