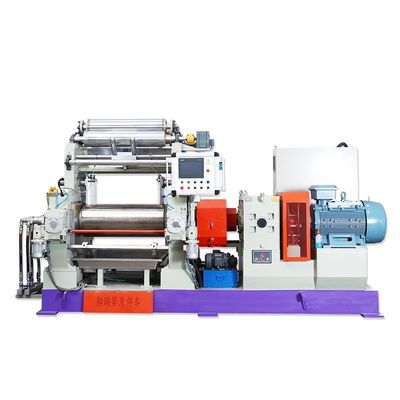

Two Roller 18 Inches Open Mixing Mill For Rubber And Plastic Processing Industry

CFine Factory Custom 18 Inches Open Mill For Rubber

Product brief introduction

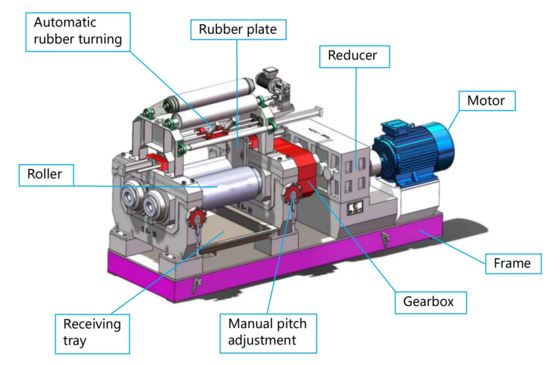

The open mixing mill is designed for batch mixing of plastics and rubber. It comprises two side-by-side rollers whose gap can be regulated. Its key task is to provide well-plasticized and uniformly mixed material to downstream equipment such as the calender. During operation, the counter-rotating rollers apply shear and compression to the rubber. Continuous kneading encourages both mixing and chemical reactions, breaking down long molecular chains so that fillers, additives, and polymers are consistently dispersed, fulfilling the requirements of rubber mixing.

Technical Data

Applied Range

Mainly used for:natural rubber,synthetic rubber,silicone,EPDM,fluororubber,EVA,PVC,TPE and other materials for molding,tablet production and other processes.

Product Superiority

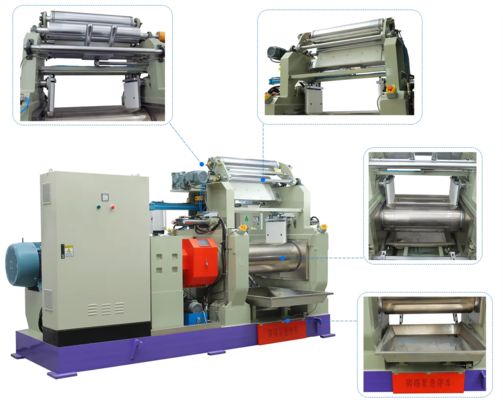

1.Bearing seat:Made of high-quality steel precision casting and processed with high-precision CNC,it has strong load-bearing capacity and good seismic resistance.
2.Bearing lubrication:Adopting aforced circulation lubricating oil system to reduce manual maintenance.
3.Base: Made ofhigh-quality steel plates welded together, with an integrated structure and good seismicresistance.
4.Roller pitch adjustment: can be customized according to customer requirements, electric adjustment or oil pressure adjustment.
5.Rubber flipping: Can be customized according to customer requirements, with an automatic glue flipping system to reduce manual laborintensity.
6.Operation: The equipment is easy to operate and easy to maintain.
7.Safety: Install emergency stop buttons in front and backfor quick shutdown.

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
