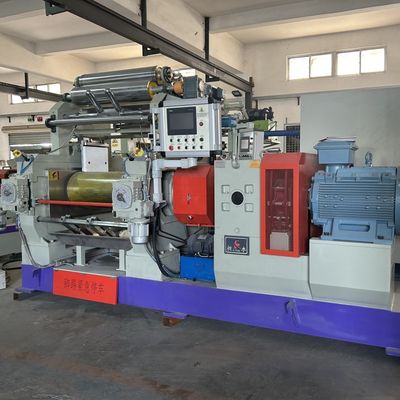

Intermittent Type 14 Inches Open Rubber Mixing Mill With 360×920mm Roller

Custom 14 Inches Production Type Open Mill

Product brief introduction

The open mixing mill is an intermittent type of equipment used for processing plastics. It consists of two parallel rollers with a gap that can be adjusted. Its main role is to blend and plasticize the prepared raw materials, supplying the calender with evenly processed molten compounds. During rubber mixing, the device uses the shearing and squeezing forces generated by the counter-rotating rollers. Through repeated kneading, the rubber undergoes both physical mixing and chemical reactions, breaking molecular chains and dispersing ingredients uniformly to achieve proper mixing.

Technical Data

Applied Range

Mainly used for:natural rubber,synthetic rubber,silicone,EPDM,fluororubber,EVA,PVC,TPE and other materials for molding,tablet production and other processes.

Product Superiority

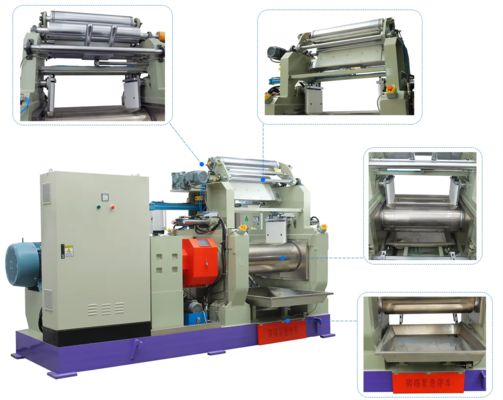

1. Bearing seat:Made of high-quality steel precision casting and processed with high-precision CNC,it has strong load-bearing capacity and good seismic resistance.
2. Bearing lubrication:Adopting aforced circulation lubricating oil system to reduce manual maintenance.
3. Base: Made ofhigh-quality steel plates welded together, with an integrated structure and good seismicresistance.
4. Roller pitch adjustment: can be customized according to customer requirements, electric adjustment or oil pressure adjustment.
5. Rubber flipping: Can be customized according to customer requirements, with an automatic glue flipping system to reduce manual laborintensity.
6. Operation: The equipment is easy to operate and easy to maintain.
7. Safety: Install emergency stop buttons in front and backfor quick shutdown.

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
