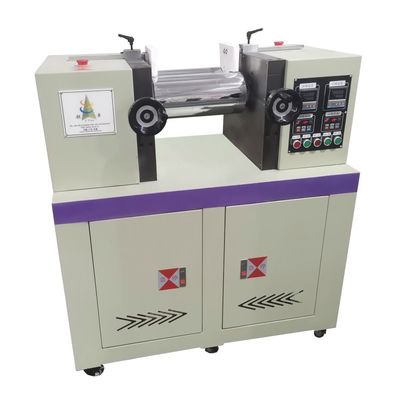

Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating

Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating
Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating

Large Image :  Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $11700-$18900
Packaging Details: Wooden cases
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now Chat Now

Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating

Description
Frequency Converter: Dual Inverter Weight: 600Kg
Diameter Of Barrel: 160Mm Length Of Barrel: 350Mm
Batch Feeding(depending On Material): 800g~1500g Electrical Heating(Main Motor): 1.5Kw
Water Cooling(Main Motor): 5.5Kw Speed Ratio: 1:1.24
Highlight:

Laboratory Open Type Mixing Mill

,

Electrical Heating Mixing Mill

,

Dual Inverter Open Type Mixing Mill

Custom 6-inch Laboratory Dual Inverter Open Mixing Mill



Product brief introduction

This experimental open-type mixer mill is designed for the mixing and dispersion of engineering plastics, pigment masterbatches, silicone rubber, and other polymers. It features double rollers with mirror-chromed surfaces, equipped with electric heating and water cooling systems to ensure uniform surface temperatures. The gap between the two rollers is adjustable to accommodate various processing needs. Additionally, the machine is equipped with multi-directional safety protection devices, making it safe, reliable, and durable in operation.





Mixing Mill Technical Data

  CF-120 CF-160 CF-200 CF-230 Remarks
Diameter of Barrel 120Mm 160Mm 200Mm 230Mm Can be customized according to customer requirements
Length of Barrel 350Mm 350Mm 520Mm 620Mm
Batch Feeding 500G~800G 800G~1500G 1500G~2600G 3000G~5000G
Electrical Heating 0.75Kw 1.5Kw 3.75Kw 3.75Kw
Water Cooling 3.75Kw 5.5Kw 7.5Kw 11Kw
Weight 400Kg 600Kg 850Kg 1100Kg





Product Superiority

1.Two rollers made of mirror high carbon steel,hardness is HRC55-62

2. Taiwan Fotek temperature controller with stable quality

3. Customized good quality heating tube with long lifetime

4. Roller gap prevent material enter heating tube

Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating 0

Laboratory Dual Inverter Open Type Mixing Mill 6 Inch Electrical Heating 1
