22KW 12 Inches Open Mixing Mill Constant Speed For Plastic Industry

Custom 12 Inches Constant Speed Production Type Open Mill

Product brief introduction

An open mixing mill is a batch mixer for plastic and rubber compounds. It features two rollers running in opposite directions, with the distance between them adjustable. The machine’s primary purpose is to homogenize and plasticize raw materials before they are delivered to the calender. In rubber mixing, the rollers exert compression and shear forces on the rubber, repeatedly kneading it. This process not only blends components but also induces chemical reactions that reduce molecular chain length, ensuring the mixture is evenly dispersed and plasticized.

Technical Data

Applied Range

Mainly used for:natural rubber,synthetic rubber,silicone,EPDM,fluororubber,EVA,PVC,TPE and other materials for molding,tablet production and other processes.

Product Superiority

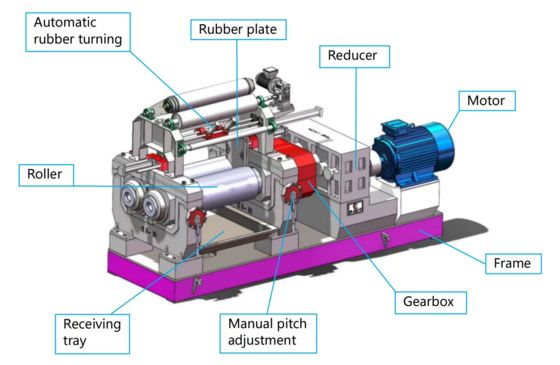

1. Bearing seat:Made of high-quality steel precision casting and processed with high-precision CNC,it has strong load-bearing capacity and good seismic resistance.
2. Bearing lubrication:Adopting aforced circulation lubricating oil system to reduce manual maintenance.
3. Base: Made ofhigh-quality steel plates welded together, with an integrated structure and good seismicresistance.
4. Roller pitch adjustment: can be customized according to customer requirements, electric adjustment or oil pressure adjustment.
5. Rubber flipping: Can be customized according to customer requirements, with an automatic glue flipping system to reduce manual laborintensity.
6. Operation: The equipment is easy to operate and easy to maintain.
7. Safety: Install emergency stop buttons in front and backfor quick shutdown.

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
