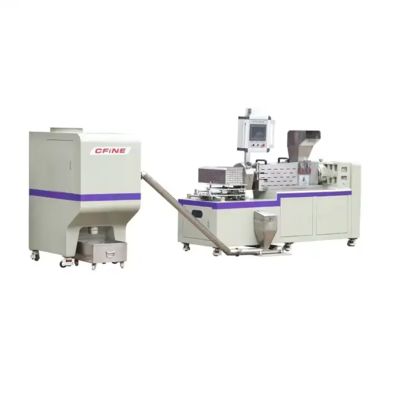

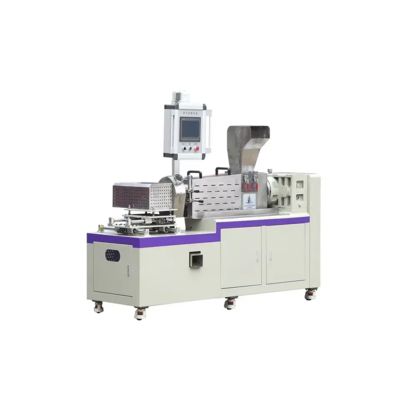

No Noise Outlet Material MIM Granulator For Metal Powder 50-100kg/H

Custom No Noise MIM Outlet Material Granulator For Metal Powder

Product brief introduction

This granulator adopts forced feeding to force feed the mixed metal powder agglomerates, which reduces the traditional process of additional crushing that affects material granulation and also prevents the contamination of materials in the crushing process.

Technical Data

Gearbox

The product design adopts the technical specifications specified in ZBJ19009-88. The gears and shaft parts are made of high-strength alloy steel. The gear accuracy is GB10095-88, grade 6, and the tooth surface hardness is HRC-60. An oversized thrust bearing is configured at the output shaft end to bear the back thrust of the screw. The main standard parts such as bearings and oil seals are all made of domestic high-quality products. The whole machine has a high load-bearing capacity, stable transmission, low noise and high efficiency.
A. Reduction ratio: 10:1
B. Hardened tooth surface ground gears are used, low noise, long life, and reliable operation
C. Oil-immersed lubrication system

Barrel and screw

A. Barrel and screw material: 38CrMoALA alloy steel nitrided for 72 hours, polished, surface wear-resistant treatment. (Specialized for metal powder)
B. Nitriding layer depth: 0.6-0.8mm, nitriding hardness: screw 780HV, barrel 850HV
C. Screw diameter: Ø50mm
D. Screw aspect ratio: 16:1

Electrical Control

A. Power supply: 3-AC380V, 50HZ
B. Temperature control: 5 zones, digital temperature controller
C. Electric control cabinet and host are integrated
D. Electrical control components are from Taiwan Shihlin, Omron, and Tende

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
