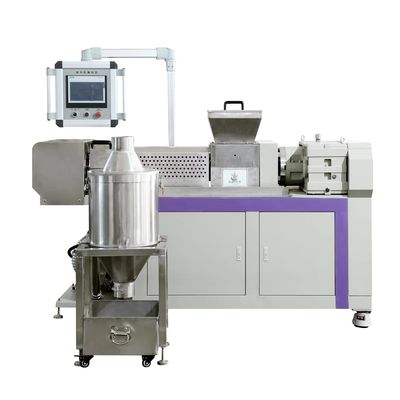

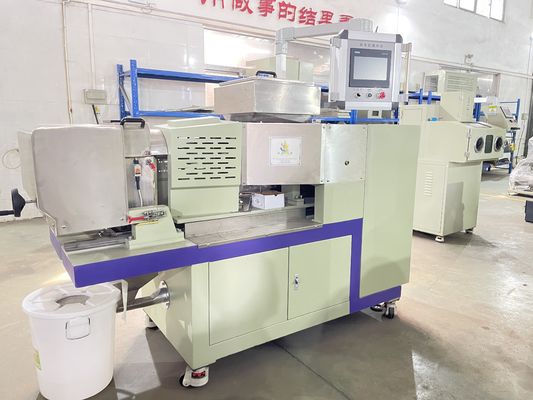

Easy Clean Double Wrist Granulator Machine Forced Air Cooling Metal Granulator

Custom Easy Clean Experimental Double Wrist Granulator For Metal

Product brief introduction

This granulator adopts forced double-wrist feeding to force feed the mixed metal powder agglomerate materials, which reduces the traditional process of additional crushing that affects material granulation and also prevents the contamination of materials in the crushing process.

High-Efficiency R&D with the Double Wrist Granulator Machine

The Double Wrist Granulator Machine is a specialized industrial solution engineered for manufacturers and research institutions that require the same precision and consistency as mass-production lines, but on a more controlled, pilot-scale basis. This machine is fundamentally designed to bridge the gap between laboratory testing and large-scale manufacturing. A primary technical advantage for buyers is that the function of the Double Wrist Granulator Machine is identical to that of a full-scale production granulator; however, the capacity has been strategically optimized and power consumption significantly reduced, making it an energy-efficient asset for any facility.

For procurement teams and material scientists, the Double Wrist Granulator Machine offers an exceptional ROI by serving as the perfect platform to develop new samples or pilot new formulas. By using a smaller-scale unit for testing, companies can save a significant amount of material costs and operational overhead that would otherwise be wasted on large-batch trials. This capability ensures that new product developments are verified for structural integrity and pellet quality before moving to high-volume output.

Key selling points that drive the superiority of this machine include:

• Seamless Process Scalability: Since the working principles mirror industrial units, the parameters used on the Double Wrist Granulator Machine can be easily scaled to mass-production environments.

• User-Centric Safety and Operation: The working process is engineered to be easy and safe, featuring intuitive controls that allow operators to monitor granulating consistency in real-time.

• Minimal Maintenance Downtime: The internal chamber and screw components are designed to be easy to clean, which is critical for facilities that frequently switch between different material grades or experimental color batches.

• Compact and Robust Design: Despite its decreased footprint, the machine maintains a heavy-duty build quality, ensuring long-term operational stability and minimal mechanical wear.

By investing in the Double Wrist Granulator Machine, your organization secures a versatile, cost-effective tool that accelerates the innovation cycle while maintaining the highest standards of granulating excellence.

Technical Data

Product Superiority

1.The function is the same as the production granulator,just the capacity is decreased and power consumption reduced.

2.It fits to develop new samples or new formula,save a lot cost.

3.The working process is easy and safe,and easy to clean.

Gearbox

The product design adopts the technical specifications specified in ZBJ19009-88. The gears and shaft parts are made of high-strength alloy steel. The gear accuracy is GB10095-88, grade 6, and the tooth surface hardness is HRC-60. An oversized thrust bearing is configured at the output shaft end to bear the back thrust of the screw. The main standard parts such as bearings and oil seals are all made of domestic high-quality products. The whole machine has a high load-bearing capacity, stable transmission, low noise and high efficiency.
A. Reduction ratio: 10:1
B. Hardened tooth surface ground gears are used, low noise, long life, and reliable operation
C. Oil-immersed lubrication system

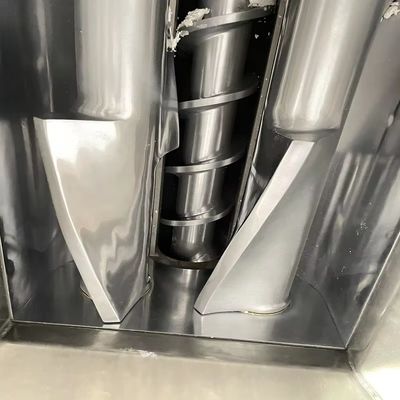

Barrel and Screw

A. Barrel and screw material: 38CrMoALA alloy steel nitrided for 72 hours, polished, surface wear-resistant treatment. (Specialized for metal powder)
B. Nitriding layer depth: 0.6-0.8mm, nitriding hardness: screw 780HV, barrel 850HV
C. Screw diameter: Ø45mm
D. Screw aspect ratio: 12:1

Electrical Control

A. Power supply: 3-AC380V, 50HZ
B. Temperature control: 3 zones, digital temperature controller
C. Electric control cabinet and host are integrated
D. Electrical control components are from Taiwan Shilin, Omron, and Tende

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
