Alloy Structure Lab Open Mixer Mill , Mixing Mill Machine For Engineering Plastics

Large Image : Alloy Structure Lab Open Mixer Mill , Mixing Mill Machine For Engineering Plastics

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	CFine
Certification:	CE,ISO 9001
Model Number:	CF-120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$9000-$20000
Packaging Details:	Wooden cases
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Alloy Structure Lab Open Mixer Mill , Mixing Mill Machine For Engineering Plastics

Description

Material:	Imported Alloy	Weight:	400KG
Diameter Of Barrel:	120mm	Length Of Barrel:	350mm
Batch Feeding(depending On Material):	500g~800g	Electrical Heating(Main Motor):	0.75kw
Water Cooling(Main Motor):	3.75kw	Speed Ratio:	1:1.24
Highlight:	Alloy Structure Mixing Mill Machine , Mixing Mill Machine For Plastics

Custom High Quality Safe Lab Open Mixer Mill For Engineering Plastics

Product brief introduction

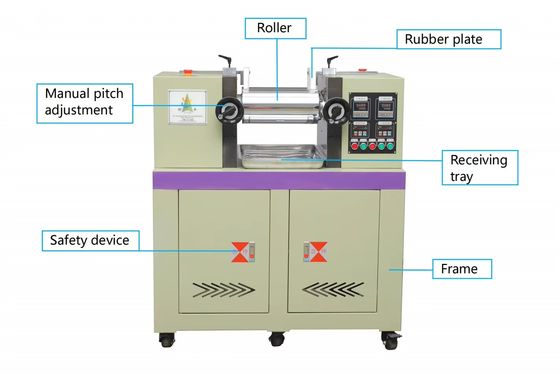

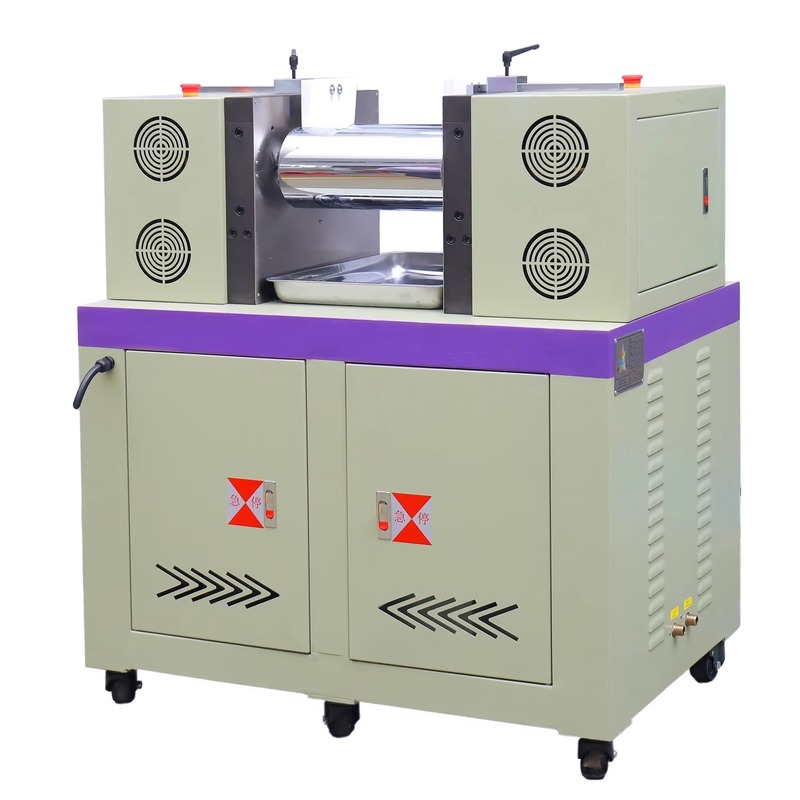

This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastic,pigment masterbatch,silicone rubber and other polymers;The double rollers are mirror-chromed with eletric heating and water cooling,the surface temperature of the roller is uniform.The space between the two rollers is adjustable;Multi-directional Safety protection device make it safe and reliable,durable.

Mixing Mill Technical Data

	CF-120	CF-160	CF-200	CF-230	Remarks
Diameter of Barrel(mm)	120	160	200	230	Length of barrel can be customized according to customer requirements
Length of Barrel(mm)	350	350	520	620
Batch Feeding	500g~800g	800g~1500g	1500g~2600g	3000g~5000g
Electrical Heating(kw)	0.75	1.5	3.75	3.75
Water Cooling(kw)	3.75	5.5	7.5	11
Weight(KG)	400	600	850	1100

Product Superiority

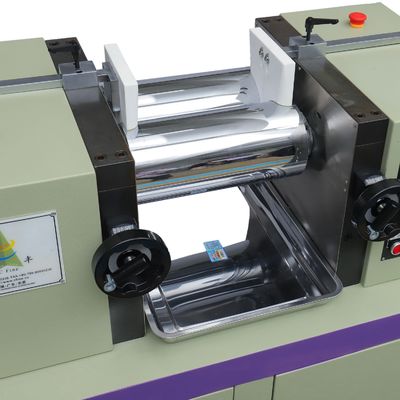

1. Two rollers made of mirror high carbon steel,hardness is HRC55-62

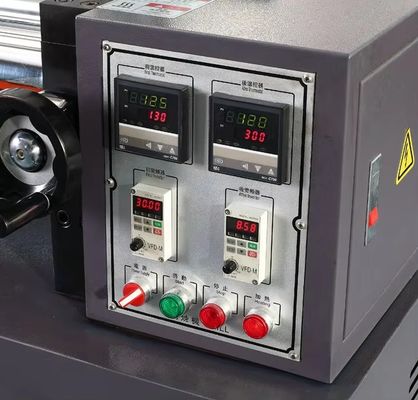

2. Taiwan Fotek temperature controller with stable quality

3. Customized good quality heating tube with long lifetime

4. Roller gap prevent material enter heating tube

Alloy Structure Lab Open Mixer Mill , Mixing Mill Machine For Engineering Plastics 0

Alloy Structure Lab Open Mixer Mill , Mixing Mill Machine For Engineering Plastics 1
